PD365

Handheld | DMR

Highlights

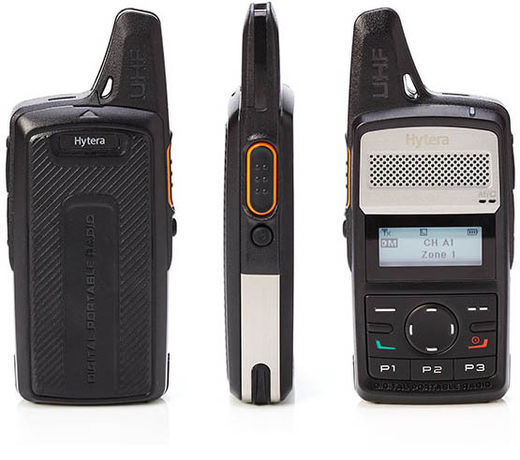

diagram indicating highlights of PD365

Clear Communication

Thanks to the latest audio processing technology and in-built speaker, the PD365 offers you outstanding audio quality

Analogue or Digital

Flexible dual mode operation for efficient migration from Analogue to Digital comms

Convenient Charging

via the Micro USB Port, or the optional wireless charger and battery casing

Excellent Coverage

Thanks to the unique intergrated antenna

Long Battery Life

Operating time of approximately 12 hours in digital mode

Functions

Created with Sketch. Wireless Charging

With the optional wireless charging kit and battery case, place the PD365 in the wireless charger holder and it will charge without the need for cables to the radio.

Created with Sketch. Mixed Mode Operation

This feature allows the radio to automatically detect and switch between analogue and digital modes based on the signal received.

Created with Sketch. Radio Check

Allows other radio users to check if a radio is available.

Created with Sketch. Stun / Unstun

You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.

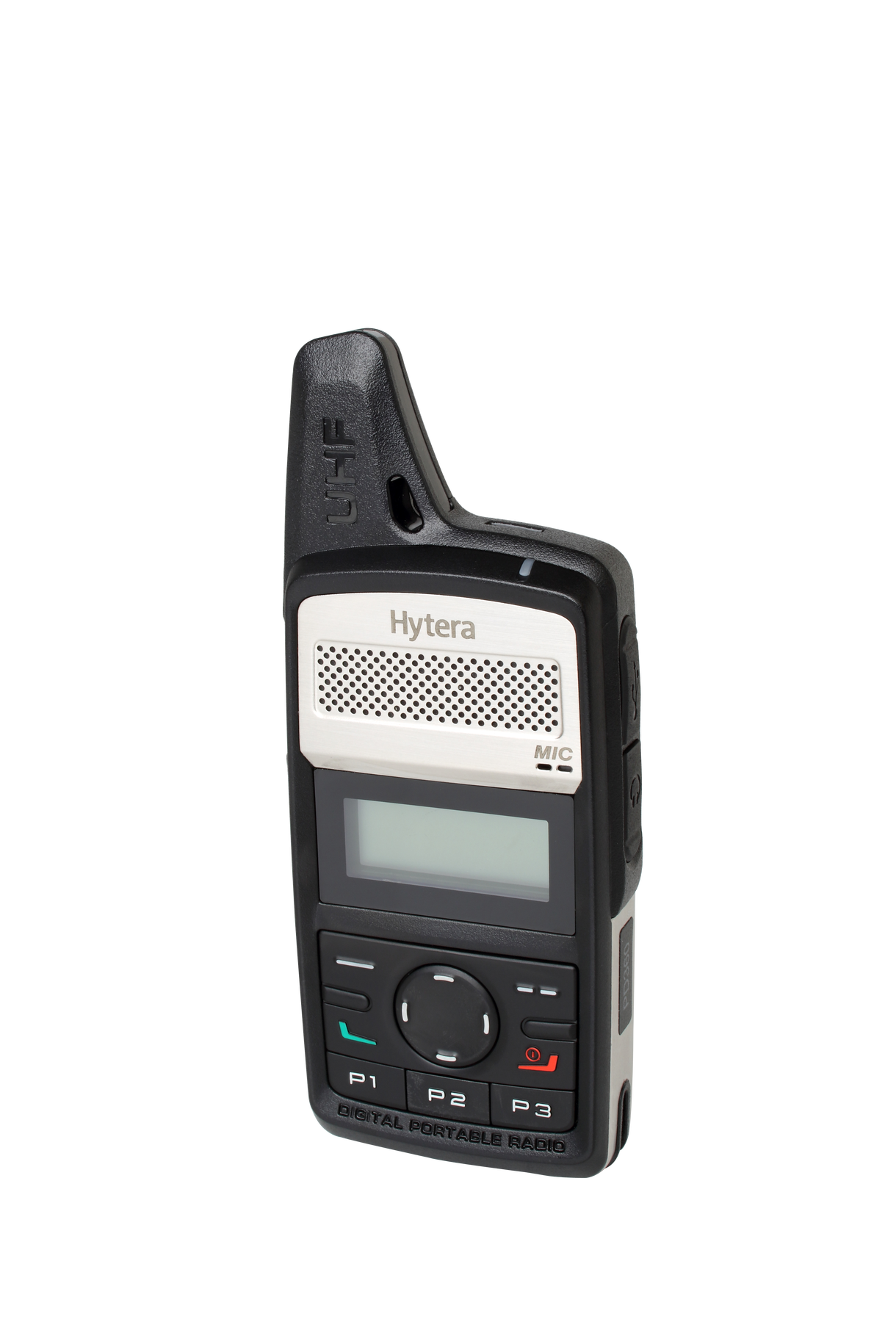

Pd36 X 17

Created with Sketch. RRS

Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.

Created with Sketch. Roaming

This feature allows the radio to switch between sites on multi-site conventional systems, ensuring seamless communication.

Created with Sketch. Emergency Mode

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

Created with Sketch. Quick Text Messages

Pre-programmed via the Customer Programming Software and stored in the quick text menu ready to send to contacts.

Accessories for PD365

Included as standard with PD365 Included as standard with PD365

Related products that work with the PD365

Technical Specifications

General

Frequency Range
UHF: 400-440MHz UHF: 430-470MHz
Channel Capacity
256 (16 zones with 16 channels per zone)
Digital Protocol
ETSI-TS102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle)
2000mAh, Analogue 10h, Digital 12h
Dimensions(W×H×D)
106 x 54 x 23mm
Weight
Approx 160g
Display
3 line monochrome
Keypad
Partial Keypad
Programmable Buttons
4

Receiver

Sensitivity
Analogue: 0.22 μV (12dB SINAD)
Analogue: 0.22µV (12dB SINAD) (typical)
Digital: 0.22 μV / BER5%
Adjacent channel selectivity
TIA-603: 60 dB @12.5 kHz / 70 dB @25 kHz
ETSI: 60 dB @12.5 kHz / 70 dB @25 kHz
Intermodulation
TIA-603: 70 dB
ETSI: 65 dB
Spurious response rejection
TIA-603: 70 dB
ETSI: 70 dB
Hum and noise
40 dB @12.5 kHz
45 dB@25 kHz
Rated audio power output
0.4 W
Rated audio distortion
<5%
Audio response
+1 to -3dB
Conducted spurious emission
<-57 dBm

Transmitter

RF power output
UHF: 3 W / 1.5 W
FM modulation
11 K0F3E @12.5kHz
16K0F3E @25kHz
4FSK digital modulation
12.5 kHz data only: 7K60FXD
12.5 kHz data and voice: 7K60FXW
Conducted/radiated emission
-36dBm @<1GHz; -30dBm @>1GHz
Modulation limiting
±2.5kHz @12.5kHz; ±5.0kHz @25kHz
FM hum & noise
40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
Adjacent channel power
60dB @12.5kHz; 70dB @20/25kHz
Audio distortion
≤3%
Digital vocoder type
AMBE+2™
Digital vocoder type
ETSI-TS102 361-1,-2,-3

Environmental Specifications

Dust & Water Intrusion
IP54 Standard

Features

GPS
NO
Telemetry
NO
Option Board
NO
Intrinsically Safe Option
NO
Bluetooth Audio
NO
Alert Call
YES (decode only) (requires latest firmware)
Stun/Unstun
YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)
Remote Monitor
YES (decode only) (requires latest hardware, firmware & chargeable licence key)
Priority Interrupt
YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)
IP Site Connect
NO
Work Order
YES (large MCU only, requires firmware upgrade)
5 Tone Signalling
NO
2 Tone Signalling
NO
HDC1200 Signalling
NO
DTMF (Phone Patch)
NO
Intelligent audio
YES
VOX
YES
Priority Scan
YES
GPS SMS
NO
Vibration
NO
Lone Worker
NO
Mandown
NO
Scrambler (Analogue)
YES (requires latest firmware)
Roaming
YES (large MCU only, firmware upgrade & licence key)
Digital Encryption
Basic Encryption YES (requires latest hardware, firmware & chargeable licence key)Advanced encryption NO
Multiple Key Encryption Decode
NO
Multilanguage Menu
YES
Pesudo Trunking in DMO and RMO
YES (requires latest firmware & chargeable licence key)
Power on & off user logo programming
NO
Voice Interrupt
YES (large MCU only) (TX interrupt for Voice Call, Emergency Call, All Call, text message)
No of Contacts (Conventional)
Digital 64 Analogue 2-Tone N/A Analogue HDC1200 N/A Analogue 5-Tone N/A
Text Messaging
64 characters (via Quick Text only)
MPT1327 / 1343 Trunking
NO
Tier 3 Trunking
NO
XPT
NO
Over-the-Air Programming
NO
Analogue Only Version
Not Available
Wireless Charging
YES (requires optional wireless charge kit and latest hardware)
RFID Reader
NO
Data Services via Bluetooth
N/A
