PD485

Handheld | DMR

Conventional digital two-way radio with GPS and Bluetooth option.

Discontinuation Date: March 31st, 2024

Robust and reliable, the Hytera PD485 handheld digital two-way radio offers a simple communication solution with OLED screen, programmable keys and emergency button, ideal for users operating in manufacturing, facilities management or education environments.

Request the PD485(G) variant for GPS and Bluetooth.

For pricing and availability, use the link below to find and contact your local dealer.

Highlights

diagram indicating highlights of PD485

Operational Efficiency

Select the PD485G version for GPS location based services and in-built Bluetooth, ideal for wireless audio accessories

Clear Communication

Thanks to the latest audio processing technology and in-built speaker, the PD485 offers you outstanding audio quality

Analogue or Digital

Detects either signal and automatically switches between modes to receive on a single channel

Instant Messaging

Supports messaging to individuals or groups and one-touch call or messaging

Long Battery Life

Operating time of approximately 16 hours in digital mode

Functions

Created with Sketch. Priority Interrupt

Send a priority transmission to interrupt other calls, ideal for important, critical messages.

Created with Sketch. Emergency Mode

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

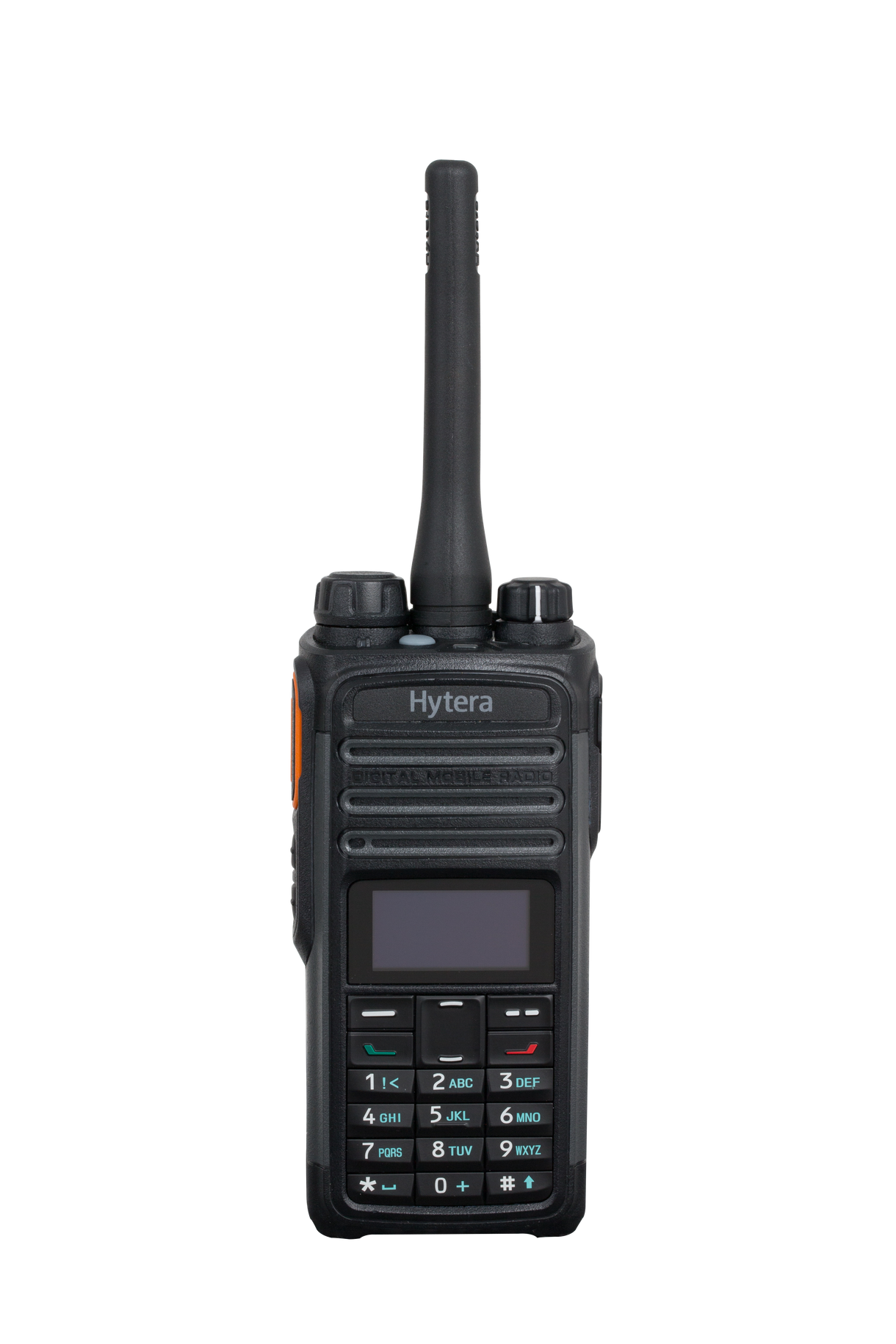

Hytera Pd485 01 Front

Created with Sketch. Stun

You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.

Created with Sketch. Roaming

This feature allows the radio to switch between sites on multi-site conventional systems, ensuring seamless communication.

Accessories for PD485

Included as standard with PD485 Included as standard with PD485

Battery

BL2010

Hytera Bl2010

Lithium-Ion Battery (2000mAh)

BL1504

included as standard with this product Hytera Bl1504

Lithium-Ion Battery (1500mAh)

Antenna

AN0141H06

Hytera An0141 H06

VHF Antenna (136-147MHz)

AN0141H07

AN0141 H07new 470x558

VHF Antenna (136-147MHz/1575MHz)

AN0153H07

AN0153 H07 470x558

VHF Antenna (147-160MHz)

AN0153H08

Hytera An0153 H08

VHF Antenna (147-160MHz/1575MHz)

AN0153H09

Hytera An0153 H08

VHF Antenna (147-160MHz/1575MHz)

AN0155H08

Hytera An0155 H02 2

VHF Antenna (136-174MHz/1575MHz)

AN0167H06

AN0167 H06 470x558

VHF Antenna (160-174MHz)

AN0167H07

Hytera An0167 H07

VHF/GPS Antenna (160-174Mhz/1575Mhz)

AN0435H13

Hytera An0435 H13

UHF Antenna (without GPS) (400-470MHz)

AN0485H05

AN0485 H05new 470x558

UHF Antenna (450-520MHz)

AN0160H13

included as standard with this product Hytera An0160 H13

VHF Antenna (146-174Mhz)

AN0435W09

included as standard with this product AN0435 W09 470x558

UHF Antenna (400-470MHz)

Charger & Power

CHV09

Hytera Chv09

Vehicle Power Adapter

CH10A06 (EOL)

Hytera Ch10 A06

Dual Charger (includes PS2005)

MCA08

Hytera Mca08

Six-Unit Charger Including Power Adapter

PS7501

Hytera Ps7501

Power Adapter without power cable

PS15002

Hytera Ps7501

Power Adapter without power cable

POA38 (EOL)

Hytera Poa38

Battery Adapter

POA59

Hytera Poa59

Charging Unit

CH10A07

included as standard with this product Hytera Ch10 A07

MCU Rapid-Rate Charger

Mounting

BRK20

Hytera Brk20

Wall-Mount Installation Kit

Carrying

NCN011

Hytera Ncn011

Nylon Carrying Case

BC08

included as standard with this product Hytera Bc08

Belt Clip

RO03

included as standard with this product Hytera Ro03

Wrist Strap

Audio

ACM-01

Hytera Acm 01

PTT & MIC Water Proof Cable (for use with receive-only Earpiece)

EAS03

EAS03 470x558

Earpiece with Acoustic Tube (Receive Only)

EH-01

Hytera Eh 01

C-Style Earpiece (Receive-Only)

EH-02

Hytera Eh 02

Swivel Style Earpiece (Receive-Only)

ES-01

Hytera Es 01

Earbud without Earpiece (Receive-Only)

ES-02 (EOL)

Hytera Es 02

Earbud with Acoustic Tube (Receive-Only)

ESM12 (EOL)

Hytera Esm12

Earbud with In-line PTT and Microphone (Black)

SM26M1

SM26 M1 352x501

Remote Speaker Microphone (without emergency button)

POA02 (EOL)

Hytera Poa02

Replacement Earbud and Acoustic Tube

Cables

PC76

Hytera Pc76

Programming Cable (USB)

Related products that work with the PD485

PD405

Hytera Pd406 01

Conventional digital two-way radio

PD415

Pd412 1

Conventional digital two-way radio with integrated RFID reader.

Technical Specifications

General

Frequency Range
UHF: 350-470MHz VHF: 136-174MHz
Channel Capacity
256 (16 zones with 16 channels per zone)
Channel Spacing
Analogue: 12.5kHz / 20KHz / 25KHz Digital: 12.5kHz
Dimensions
117x55x37mm
Weight
308g
Battery
1500mAh Li-ion (Standard)
Battery Life (5-5-90 Duty Cycle)
Digital: 16h
Display
3 line monochrome
Keypad
YES
Programmable Buttons
3

Environmental Specifications

Dustproof & Waterproof
IP54 Standard

Features

RRS
YES
GPS
YES (factory option) (available via firmware upgrade)
Telemetry
NO
Option Board
NO
Intrinsically Safe Option
NO
Bluetooth Audio
YES (factory option) (available via firmware upgrade)
Radio Check
YES
Alert Call
YES
Stun / Unstun
YES (chargeable licence key)
Remote Monitor
YES ( chargeable licence key)
Priority Interrupt
YES (chargeable licence key)
IP Site Connect
YES
Roaming
YES
5 Tone Signalling
NO
2 Tone Signalling
NO
HDC 1200 Signalling
NO
VOX
YES
Priority Scan
YES
Intelligent Audio
YES
GPS SMS
YES
Vibration
NO
Emergency Mode
YES
Lone Worker
NO
Mandown
NO
Scrambler (Analogue)
YES
Digital Encryption
Basic Encryption YES (chargeable licence key) Advanced encryption NO
Pesudo Trunking in DMO and RMO
YES (chargeable licence key)
Multiple Key Encryption Decode
NO
Multi-language Menu
NO
Pseudo Trunking in DMO and RMO
YES
Power on & off user logo programming
NO
Voice Interrupt
YES (TX interrupt for Voice Call, Emergency Call, All Call, text message)
No of Contacts (Conventional)
Digital 64, Analogue DTMF 32, Analogue HDC1200: N/A, Analogue 2 Tone / 5-Tone: N/A
Text Messaging
64 characters (via Quick Text only)
MPT1327 / 1343 Trunking
NO
Tier 3 Trunking
NO
XPT
NO
Wireless Charging
NO
RFID Reader
NO
Mixed Mode Operation
YES
Data Services via Bluetooth
N/A
