PD405
Conventional digital two-way radio
Discontinuation Date: March 31st, 2024

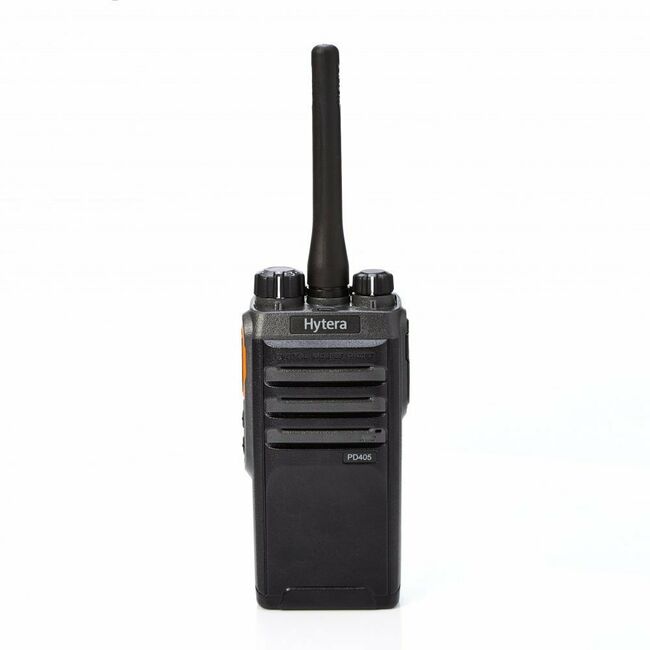

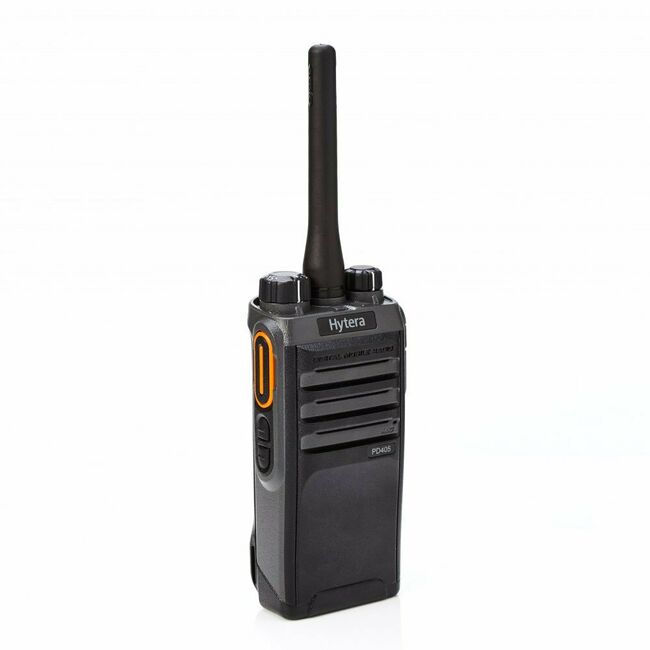

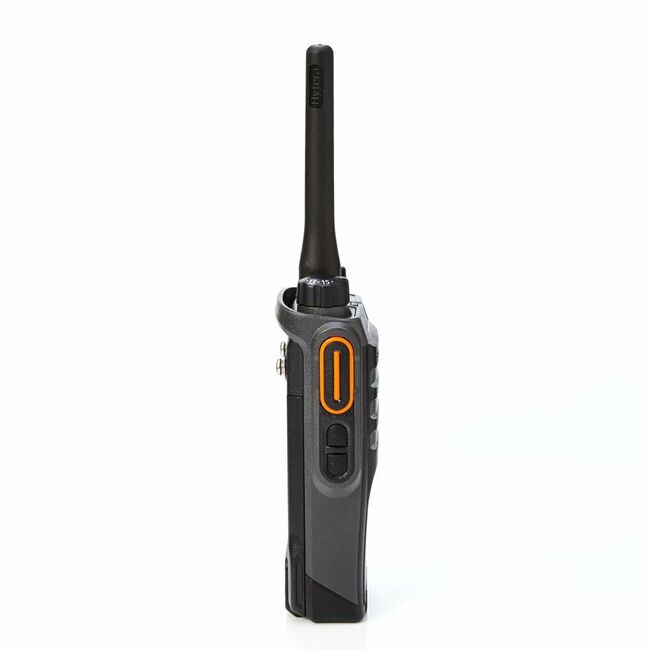

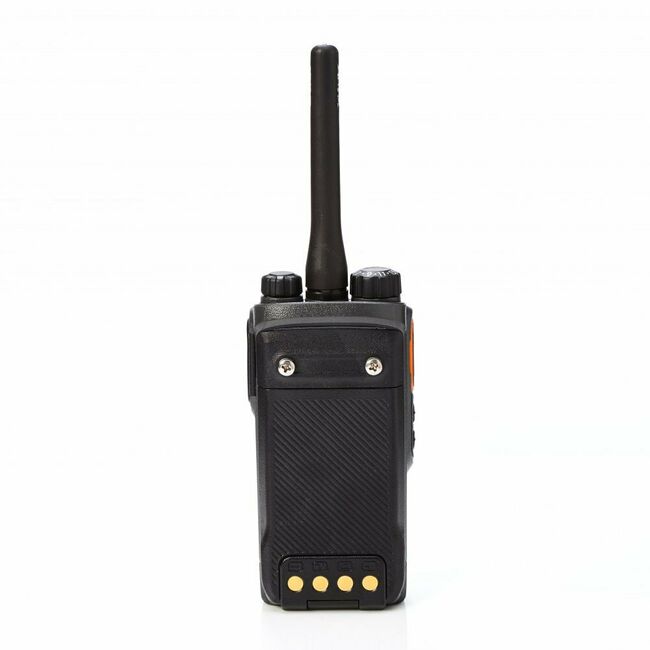

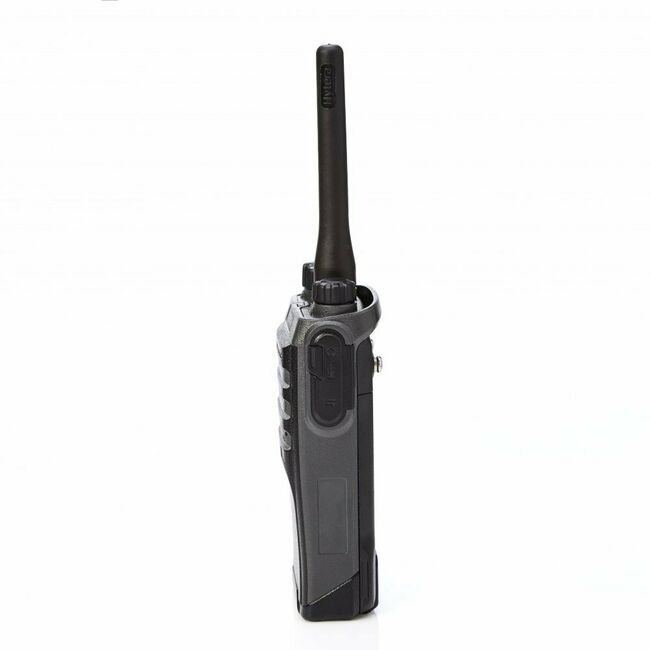

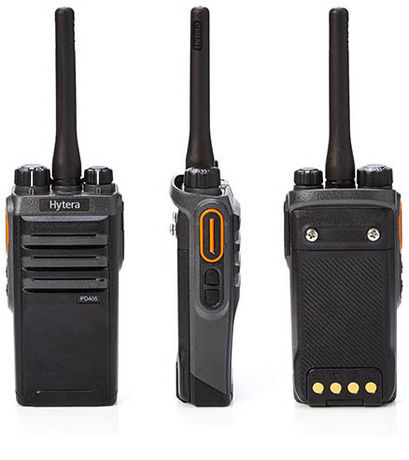

Robust and reliable, the Hytera PD405 handheld digital two-way radio offers a simple communication solution, ideal for users operating in manufacturing, facilities management or education environments.
For pricing and availability, use the link below to find and contact your local dealer.
Highlights
Flexible Accessories
A wide range of accessory options are available to optimise your comfort and individual requirement.
Clear Communication
Thanks to the latest audio processing technology and in-built speaker, the PD405 offers you outstanding audio quality
Analogue or Digital
Detects either signal and automatically switches between modes to receive on a single channel.
Instant Messaging
Supports pre-programmed messaging to individuals or groups
Long Battery Life
Operating time of approximately 16 hours in digital mode
Functions
Stun / Unstun
You can disable/enable the radio remotely, ideal if a device is lost, stolen or being misused.
Roaming
This feature allows the radio to switch between sites on multi-site conventional systems, ensuring seamless communication.
RRS
Radio Register Service, allowing a dispatching application to see when a radio is switched on or switched off.
Radio Check
Allows other radio users to check if a radio is available.
Emergency Mode
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.
Quick Text Messages
Pre-programmed via the Customer Programming Software and stored in the quick text menu ready to send to contacts.
Mixed Mode Operation
This feature allows the radio to automatically detect and switch between analogue and digital modes based on the signal received.
Accessories for PD405
Included as standard with PD405
Battery
Antenna
Charger & Power
Mounting
Carrying
Audio
Cables
Related products that work with the PD405
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz UHF1: 400-470MHz UHF3: 350-400MHz
- Channel Capacity
- 48 (3 zones with 16 channels per zone)
- Digital Protocol
- ETSI-TS102 361-1,2 & 3
- Battery
- 1500mAh (Standard) 2000mAh Li-ion (option)
- Battery Life (5-5-90 Duty Cycle)
- 1500mAh (Standard): Analogue 12h, Digital 16h 2000mAh Li-ion (option): Analogue 16h, Digital 22h
- Dimensions(W×H×D)
- 112 x 54 x 28mm
- Weight
- Approx 270g (1500mAh Li-ion)
- Display
- NO
- Keypad
- NO
- Programmable Buttons
- 2
Environmental Specifications
- Dust & Water Intrusion
- IP55 Standard
Features
- RRS
- YES (requires firmware upgrade)
- GPS
- NO
- Telemetry
- NO
- Option Board
- NO
- Intrinsically Safe Option
- NO
- Bluetooth Audio
- NO
- Radio Check
- YES (decode only) (requires firmware upgrade)
- Alert Call
- YES (decode only) (requires latest firmware)
- Remote Monitor
- YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)
- Priority Interrupt
- YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)
- IP Site Connect
- NO
- Stun/Unstun
- YES (Decode only) (large MCU only, firmware upgrade & chargeable licence key)
- Roaming
- YES (large MCU only, firmware upgrade & licence key)
- Work Order
- NO
- Emergency Mode
- YES (large MCU only & firmware upgrade)
- 5 Tone Signalling
- NO
- 2 Tone Signalling
- NO
- HDC1200 Signalling
- NO
- DTMF (Phone Patch)
- NO
- Intelligent audio
- YES
- VOX
- YES
- Priority Scan
- YES
- GPS SMS
- NO
- Vibration
- NO
- Lone Worker
- NO
- Mandown
- NO
- Scrambler (Analogue)
- YES (requires latest firmware)
- Pesudo Trunking in DMO and RMO
- YES (requires firmware upgrade & chargeable licence key)
- Digital Encryption
- Basic Encryption YES (requires latest hardware, firmware & chargeable licence key)Advanced encryption NO
- Multiple Key Encryption Decode
- NO
- Multilanguage Menu
- NO
- Pesudo Trunking in DMO and RMO
- YES (requires latest firmware & chargeable licence key)
- Power on & off user logo programming
- NO
- Voice Interrupt
- YES (large MCU only) (TX interrupt for Voice Call, Emergency Call, All Call, text message)
- No of Contacts (Conventional)
- Digital 64 Analogue 2-Tone N/A Analogue HDC1200 N/A Analogue 5-Tone N/A
- Text Messaging
- 64 characters (via Quick Text only)
- MPT1327 / 1343 Trunking
- NO
- Tier 3 Trunking
- NO
- XPT
- NO
- Over-the-Air Programming
- NO
- Analogue Only Version
- Not Available
- Wireless Charging
- NO
- RFID Reader
- NO
- Data Services via Bluetooth
- N/A
