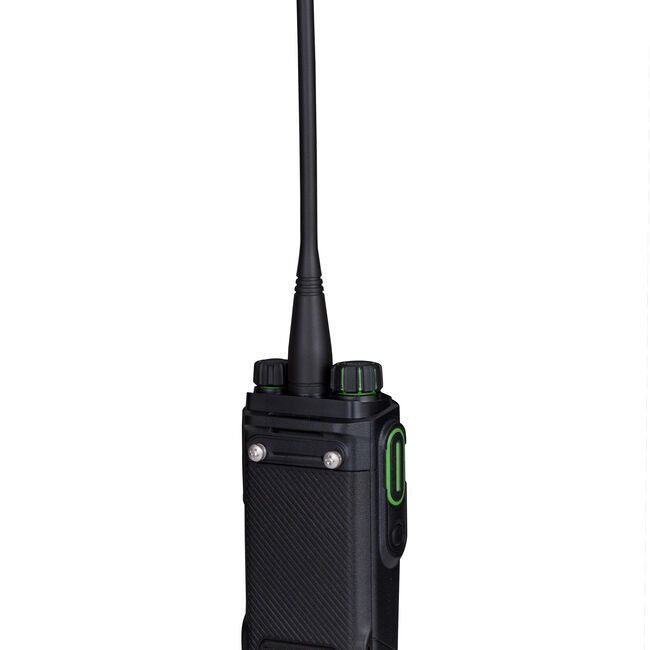

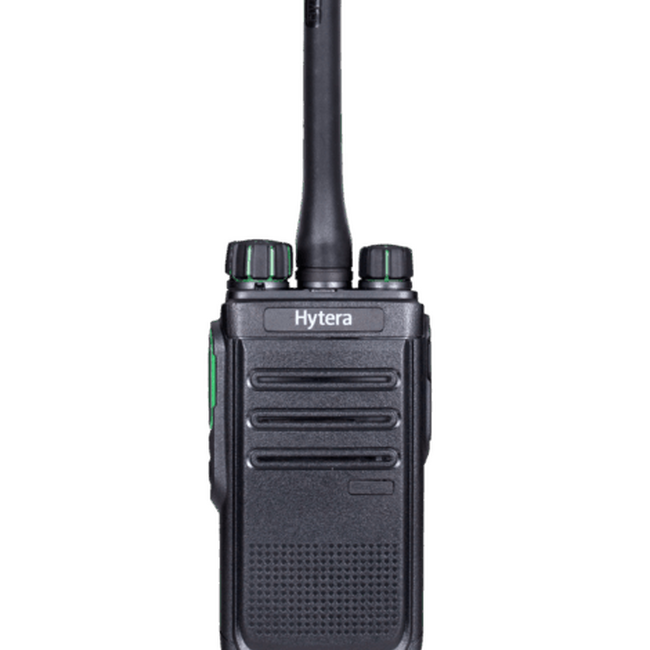

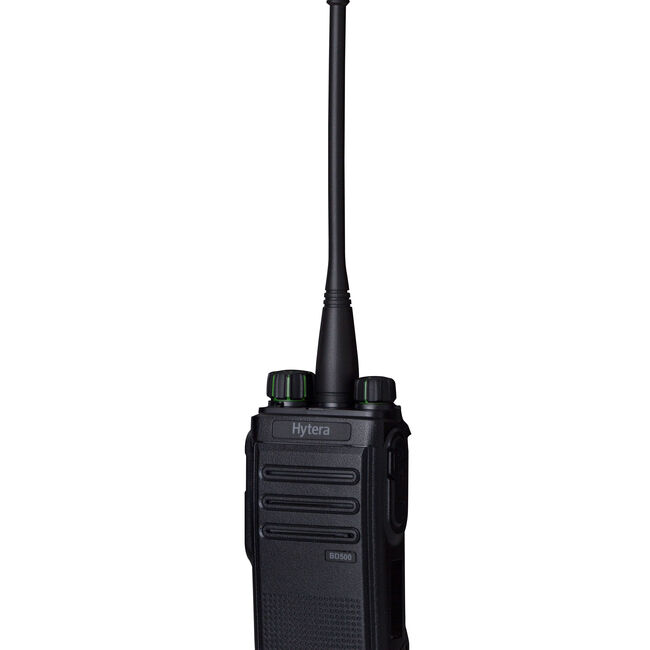

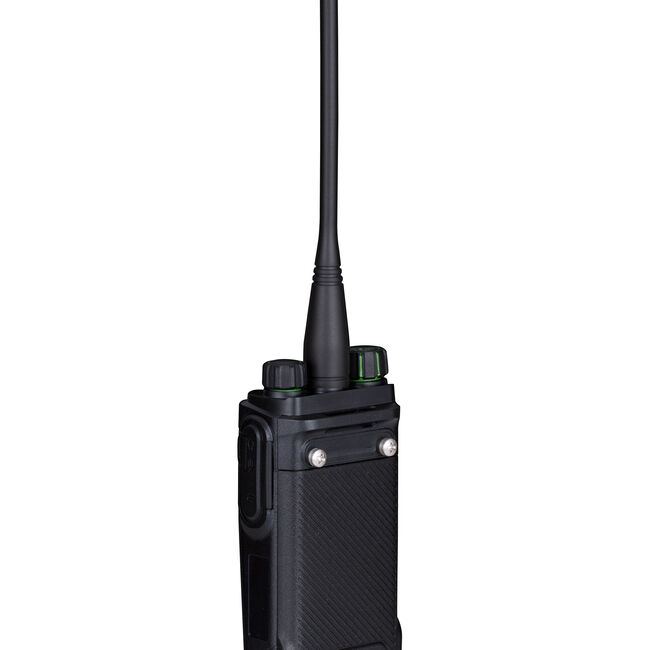

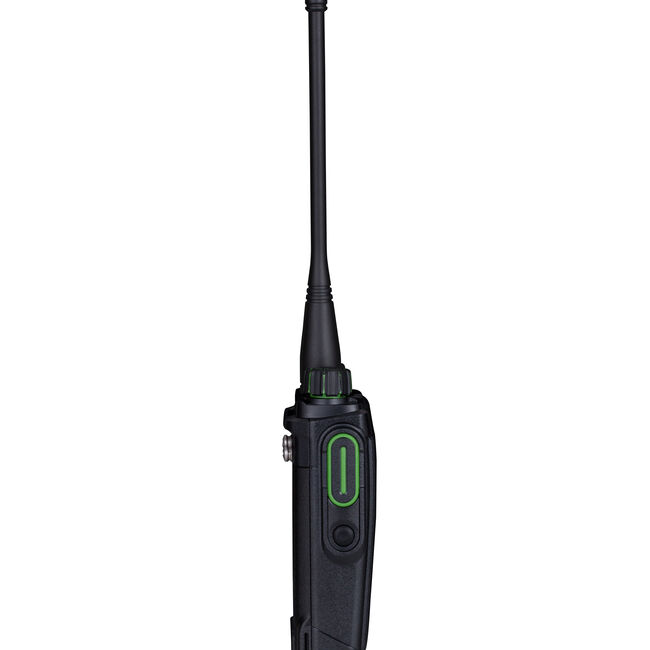

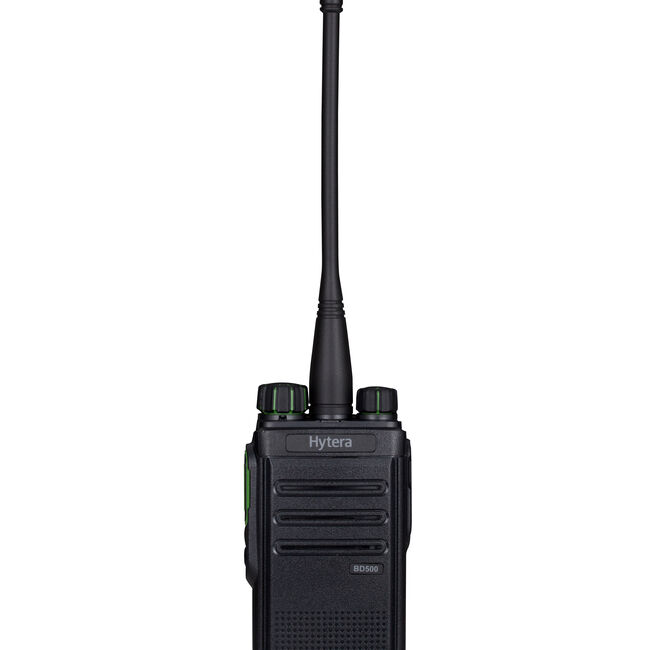

BD505
Business Digital Radio
Hytera's BD505 two-way radio is the compact device that provides a professional communication in easy to operate way.
Highlights
Antenna
Enhance signal receiving ability.
Speaker and Microphone
Provide clear receive and transmit audio.
LED indicator
Show the radio receiving and transmitting status as green light and red light.
Channel knob
Supports 16 channels to be changed very easily.
Functions
RUGGED AND RELIABLE
BD505 is designed and tested to meet Military Standards 810 C, D, E, F and G, including temperature shock, vibration, high & low temperature and humidity. IP54 dust- and water-proof design guarantees the reliability in different environments. Based on TDMA technology, the radio can work longer, up to 22 hours in digital mode.
CLEAR COMMUNICATION
With digital encoding and correction technology, human voice is transmitted much clearer without background noise, even from a rather far distance.This is a new experience of better audio quality.
CHANNEL ANNOUNCEMENT
This feature allows switching of channels to be quick and accurate even in adverse working conditions.
ANALOGUE & DIGITAL DUAL MODES
BD505 can support both analogue and digital modes on the same hardware. You can switch between two operation modes very easily and it helps you to communicate with analogue radios.
LONG BATTERY LIFE
Based on TDMA technology, BD505 in digital mode can work as long as 16 hours @ 1500mAh or 22 hours @2000mAh in 5-5-90 mode.
Accessories for BD505
Included as standard with BD505
Antenna
Charger & Power
Carrying
Audio
Cables
Related products that work with the BD505
Technical Specifications
General data
- Frequency range
- UHF:400-470 MHz VHF:146-174 MHz
- Channel capacity
- 48
- Zone capacity
- 3
- Channel spacing
- 25/12.5KHz
- Operating voltage
- 3.7 V
- Battery
- 1500Ah (Li-Ion) 2000Ah (Li-Ion)
- Battery service life (5/5/90)
- Analogue: 12/16 hours (1500mAh) Digital:16/22 hours (2000mAh)
- Frequency stability
- ±0.5 ppm
- Antenna impedance
- 50 Ω
- Dimensions (H×W×D)
- 108×54×29mm
- Weight
- 8 oz. (with AN0435W09 and BL1506)
Transmitter
- RF Power Output
- VHF High power: 5W VHF Low power: 1W UHF High power: 4W UHF Low power: 1W
- FM Modulation
- 11K0F3E @ 12.5KHz 16K0F3E @ 25KHz
- Conducted/Radiated Emission
- -36 dBm < 1 GHz -30 dBm > 1 GHz
- Modulation limiting
- ±2.5 kHz at 12.5 kHz ±5.0 kHz at 25 kHz
- FM Hum & Noise
- 40 dB at 12.5 kHz 45 dB at 25 kHz
- Audio Response
- +1 ~ -3dB
- Audio Distortion
- ≤ 3%
Receiver
- Sensitivity (Digital)
- 0.22μV / BER 5%
- Sensitivity (digital)
- 0.22μV (Typical) (12dB SIN AD) 0.4μV (20dB SIN AD)
- Adjacent channel selectivityTIA-603
- 60dB @ 12.5KHz/70dB @ 25KHz
- Hum & Noise
- 40dB @ 12.5KHz 45dB @ 25KHz
- Rated Audio Power Output
- 0.5W
Environmental Specs
- Operating temperature
- -30 °C to +60 °C
- Storage temperature
- -40 °C to +85 °C
- LED
- IEC 61000-4-2 (level 4) ±8 kV (contact ) ±15 kV (air)
- Dustproof & Waterproof
- IP54 Standard
- Humidity
- Per MIL-STD-810 C/D/E/F/G Standard
- Shock & Vibration
- Per MIL-STD-810 C/D/E/F/G Standard
