PNC560

Handheld | LTE

Highlights

diagram indicating highlights of PNC560

    Functions

    Created with Sketch. Barcode/QR code Scanner*

    1. Optional Barcode / QR code scanner available on special model 2. APP + Scanning all in one, significant efficiency improving

    Icon 24px Created with Sketch. ANDROID 12 ECOSYSTEM

    Latest Android OS brings more security, more efficiency and more productivity

    Created with Sketch. 3GPP MCX Services

    The PNC560 supports dedicated 3GPP MCX service QCIs and 40ms short MSP for eMBMS service and complies with the latest 3GPP release features by the HyTalk MC platform.

    PNC560 scanner

    Created with Sketch. DUAL DOMAINS

    Isolation between business data and personal data, harmonize business security and personal privacy, one device for two roles

    Icon 24px Created with Sketch. BIOMETRIC ID

    1. Fingerprint unlock and authentication, integrated with side power button, one step to use, simplified and secured 2. Face unlock and authentication, fast security check for outdoor glove operations

    Ergo-20x20 Unbreakable Data Security

    PNC560 employs a multi-layer security mechanism integrated in both hardware and software design to provide comprehensive & adequate data protection on the device.

    PNC560 life work mode

    Created with Sketch. Loud and Clear Audio

    The dual-speaker, together with the intelligent power amplifier, enable PNC560 to deliver a loud audio. The AI-based noise cancellation, echo reduction, and wind noise cancellation help to filter the noise and recognize the voice to improve clarity.

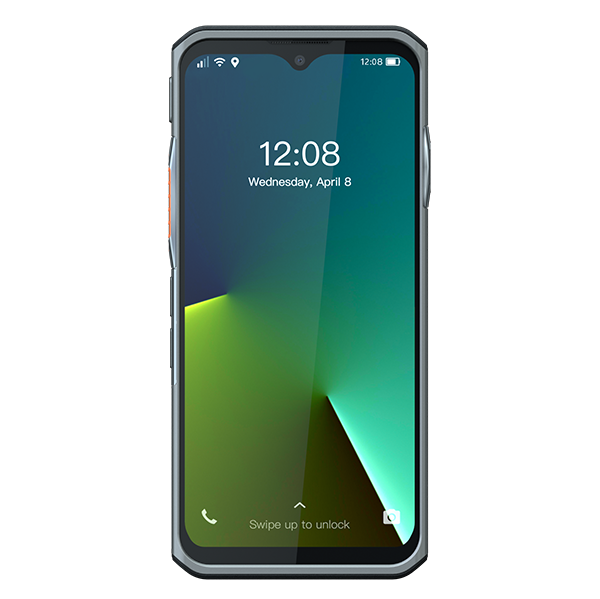

    Created with Sketch. 6.3-inch FHD+ Full-screen

    The PNC560 features a massive 6.3-inch full HD screen with a dewdrop notch. This screen is sunlight readable and works with gloves and wet fingers, ideal for use on construction, manufacturing, and industrial sites.

    4G-20x20 3 High-resolution Cameras

    Triple cameras featuring video stabilization solution, low-light photography, and high dynamic range technology, easy to capture stable videos and sharp pictures on the move, day or night, near or far.

    MIL-STD-20x20 Unmatched Durability

    Rated with IP68, PNC560 is exceptionally resistant to water and dust. Furthermore, the PNC560 stands up to 1.5-meter drop and extreme temperatures from –20°C to +60°C.

    Accessories for PNC560

    Included as standard with PNC560 Included as standard with PNC560

    Related products that work with the PNC560

    Technical Specifications

    General

    Frequency Band
    5G: N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 LTE-TDD: B38/B39/B40/B41/B42/B43/B48 GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8
    Operating System
    Android 12
    Memory
    RAM: 4 GB, ROM: 64 GB/RAM: 6 GB, ROM: 128 GB Micro SD: 256 GB (Max)
    Dimensions (H x W x D)
    166.6 x 77.1 x 13mm
    Weight
    About 270 g
    Screen Size
    6.3 inches
    Cameras
    Front: 8 MP, Rear: 48 MP*and 8 MP
    Charging
    USB Type C; Charger
    Battery
    5,040 mAh
    Card Slot
    2 x Nano SIM, 1 x Micro SD
    Speaker
    3W dual speakers
    Positioning
    GPS/BDS/GLONASS/GALILEO/A-GPS
    BT
    BT 5.0
    NFC
    Available

    Multimedia

    Video Resolution
    1080p@30fps
    Video File Format
    Mp4, 3GP
    Video Coding Format
    P0, H.264, BP/MP/HP, SP/ASP, DivX 4x/5x/6x, VP9, MP
    Photo File Format
    JPG, GIF, BMP, PNG, WebP
    Audio File Format
    MP3
    Audio Coding Format
    ACC+, eAAC, AMR-NB, AMR-WB, G.711, Windows Media Audio, (WMA) 9/10 Pro

    Environment

    Operating Temperature
    -20℃ to +60℃
    Storage Temperature
    -30℃ to +70℃
    ESD
    IEC 61000-4-2, (ESD)±12 kV (Air); ±8 kV (Contact)
    Ingress Protection
    IP68
    Drop-proof
    1.5m
