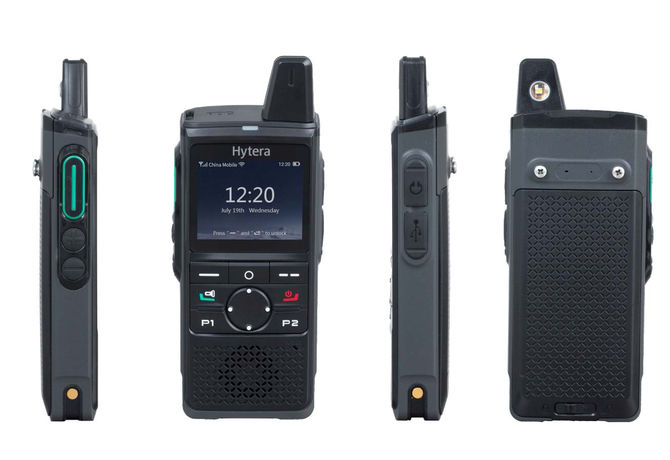

PNC370

Handheld | LTE

Highlights

diagram indicating highlights of PNC370

Reliable and Rugged

Compliant with MIL-STD-810 G and IP55 delivering a long-lasting solution even in challenging environments

GPS Location

The in-built GPS supports outdoor positioning and dispatching, as well as the RTC for displaying your call history

Wide Coverage

Extended workforce communication to anyone, anywhere with mobile 3G/4G coverage supported by the Micro-SIM

Clear Communication

Dual-microphone noise suppression guarantees good audio quality for individual, group and emergency calls

Wireless Convenience

Bluetooth enabled to support covert audio accessories

Functions

Created with Sketch. Long Battery Life

The impressive battery capacity delivers a long working time, supported with Micro-USB charging to make it easy to charge anytime, anywhere.

Created with Sketch. Built-in Bluetooth

Built-in Bluetooth supports wireless connection with BT audio accessories releasing your hands and improving the efficiency.

Icon 24px Created with Sketch. Pre-installed APP

Android apps pre-installed provides convenient PoC services. Hytera can also offer an open API for 3rd party development and customization.

Created with Sketch. Built-in WiFi

Connection with WiFi networks to provide reliable communications, particularly indoors, whilst also saving on data cost.

Created with Sketch. Real-time Availability

Check the status of contacts in real-time (online or offline), providing clear information about team availability.

Accessories for PNC370

Included as standard with PNC370 Included as standard with PNC370

Related products that work with the PNC370

Technical Specifications

Standards & Frequencies

LTE
FDD LTE: B1/3/5/7/8
WCDMA
B1
WLAN
2.4GHz, 802.11 b/g/n
Bluetooth
BT 4.1
Positioning System
GPS/BDS/GLONASS

General Specifications

Dimensions (H x W x D)
121 x 55.5 x 24mm
Weight (with battery)
185g (with battery)
Operating System
Android 5.1
Processor
MSM8909, Quad-core, 1.1GHz
Memory
RAM: 512M ROM: 4GB
SIM Card
Micro SIM (12x15mm)
Display
2.0'' 320×240 TFT/Non-touch
Port
Micro USB 2.0 2.5mm Audio Jack Dock Charger interface
Operating Voltage
3.6V (Rated)
Battery
3100mAh (Li-ion)
Battery Life
≥18h (5-5-90 working cycle)

Transceiver

Audio Power Output
1W (Rated) (Max: 2W)
Mic
Dual mic noise suppression

Environmental

Dust and Water Proof
IP55 Standard
Shock & Vibration
MIL-STD-810 G Standard
Drop Resistance
1.2m
ESD
IEC 61000-4-2 ±8 kV (Contact) ±12 kV (Air)
Operation Temperature
-20°C ~ +60°C
Storage Temperature
-30°C ~ +70°C
