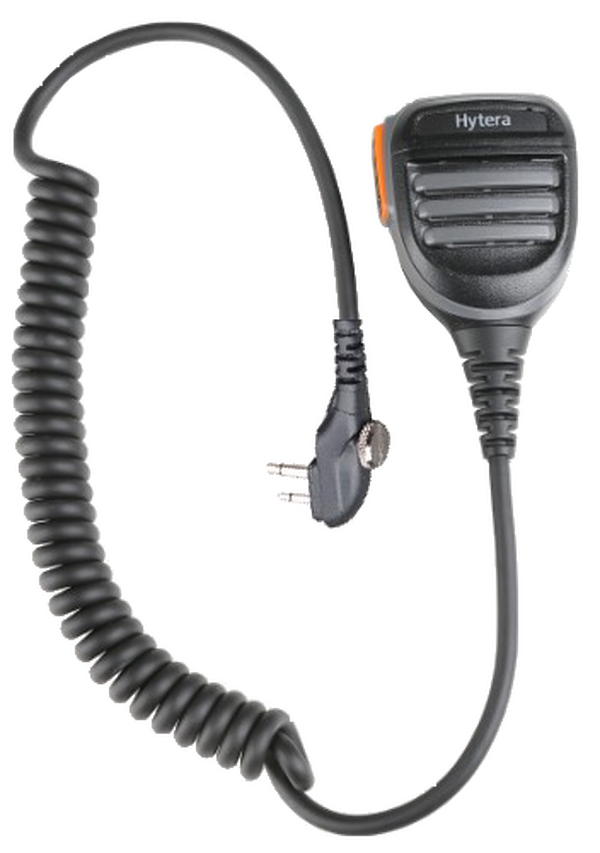

SM26M1
Remote Speaker Microphone (without emergency button)
Small, light and IP54 compliant remote speaker microphone with 2.5mm external audio connector.
Highlights
Functions
Technical Specifications
Specifications
- Dimensions
- 76.85 x 60.55 x 34 mm
- Weight
- about 160g
- Color
- black
- PTT key
- available
- Emergency key
- none
- Audio interface
- 2.5 mm jack socket
- Radio connector
- 2-pin
- Microphone sensitivity
- -42 ±3dB @1kHz 3.0V 2.2K; 0dB=1V/Pa
- Speaker power
- 2 W (rated); 3 W (max.)
- Speaker impedance
- 20 Ω ±15% @1kHz
- Speaker frequency response
- 97 ±3dB @1kHz at 2W/30cm
- Ingress protection
- IP54
- Operating temperature
- -30 to 60 °C
- Storage temperature
- -40 to 85 °C
