MD625

Mobile | DMR

Highlights

diagram indicating highlights of MD625

Clear Communication

Delivered thanks to the latest audio processing technology and powerful in-built speaker, assisted with a 1.5" LCD display and three programmable buttons.

Analogue or Digital

The MD625 can be configured in both analogue and digital channels. Users can utilise mix mode scan and switch between the two, making it simple to migrate to digital.

Diverse Accessories and Bluetooth (Optional)

Operated via handheld microphone as standard, select the Bluetooth version to make the most of wireless accessory options, alongside a range of external switches and speakers.

GPS Location Services (Optional)

The MD625 is able to upload its real-time position to AVL Applications if coupled with the optional external GPS module and antenna.

Workforce Safety

Visible and easily accessible orange emergency button provided as a standard to initiate an emergency alarm and calls to other radios.

Functions

Created with Sketch. Bluetooth Audio (Optional)

Wireless connectivity to audio devices to improve user experience.

Created with Sketch. Dual Mode

Operating in Analogue and Digital mode to aid your migration from Analogue to Digital two-way radio technology.

Created with Sketch. GPS (Optional Accessory)

Global Positioning System, enabling location based services to improve safety and control.

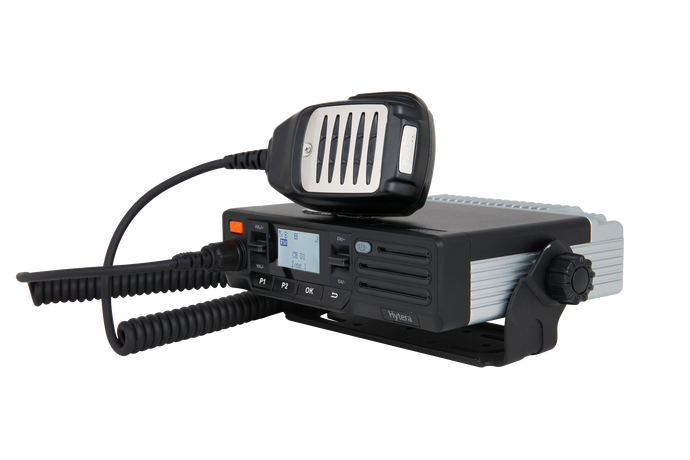

Md625 1

Created with Sketch. Roaming

This feature allows the radio to switch between sites, ensuring seamless communication.

Created with Sketch. Pseudo Trunking

Using pseudo-trunking, a Hytera patented technology, communication slots can be shared to improve capacity usage with transmissions either direct to devices or to repeater.

Created with Sketch. Emergency Mode

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.

Created with Sketch. Digital Encryption

Ensuring your radio transmissions are secure with end-to-end encryption

Accessories for MD625

Included as standard with MD625 Included as standard with MD625

Related products that work with the MD625

Technical Specifications

General

Frequency Range
UHF: 400-470 MHz* VHF: 136-174 MHz
Channel Capacity
128 analogue, 128 digital (16 zones with 16 channels per zone)
Digital Protocol
ETSI-TS102 361-1,2 & 3
Dimensions
164 x 43 x 150 (mm)
Weight
1.1Kg
Display
1.5 inch LCD, 128*64 pixels, monochrome
Programmable Buttons
3
Keypad
NO

Receiver

Sensitivity
Analogue: 0.4 μV (20 dB SIN AD)
Analogue: 0.22 μV (Typical) (12 dB SIN AD)
Digital: 0.3µV / BER 5%
Adjacent channel selectivity
TIA-603: 60dB @12.5kHz / 70dB @25kHz
ETSI: 60 dB @12.5kHz / 70dB @25kHz
Intermodulation
TIA-603: 70dB @12.5/25kHz
ETSI: 65dB @12.5/25kHz
Spurious Response Rejection
TIA-603: 70dB @12.5/25kHz
ETSI: 70dB @12.5/25kHz
Blocking
TIA-603: 90 dB
ETSI: 84 dB
Hum and Noise
40dB @12.5kHz; 45dB @25kHz
Rated Audio Power Output
internal (16 Ohm load): 4W
external (8 Ohm load): 8W
Max Audio Power Output
internal (16 Ohm load): 6W
external (8 Ohm load): 12W
Rated Audio Distortion
<3%
Audio Response
+1 to -3 dB
Conducted Spurious Emission
< -57 dBm@< 1 GHz
< -47 dBm@> 1 GHz

Transmitter

RF Power Output
Low Power model: 1-25 W
High Power model: 5-45 W (UHF); 5-50 W (VHF)
FM Modulation
11K0F3E @ 12.5 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation
12.5 kHz Data Only: 7K60FXD
12.5 kHz Data&Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm @<1GHz; -30dBm @>1GHz
Modulation Limiting
±2.5kHz @12.5kHz; ±5.0kHz @25kHz
FM Hum and Noise
40dB @12.5kHz; 45dB @25kHz
Adjacent Channel Power
60dB @12.5kHz; 70dB @25kHz
Audio Distortion
<3%
Digital Vocoder Type
AMBE+2™ / SELP

Environmental Specifications

Operating Temperature
30°C to +60°C
Storage Temperature
-40°C to +85°C
US Military Standard
MIL-STD-810 G
Dustproof & Waterproof
IP54
