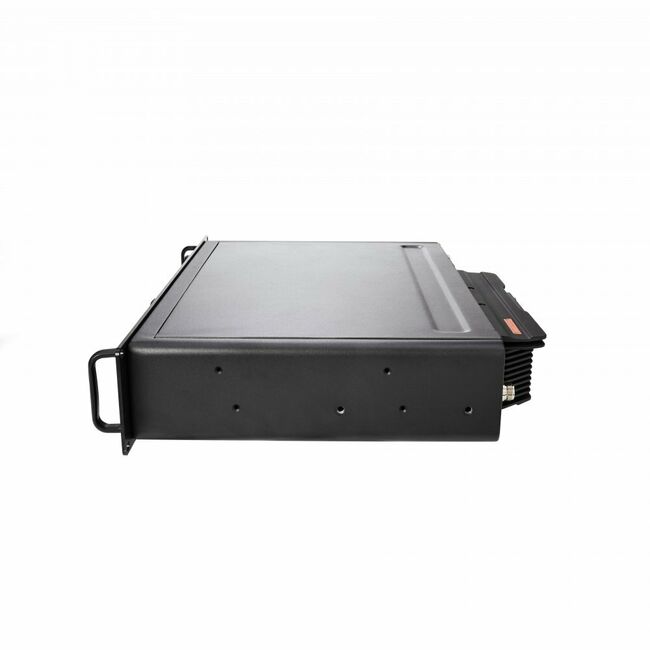

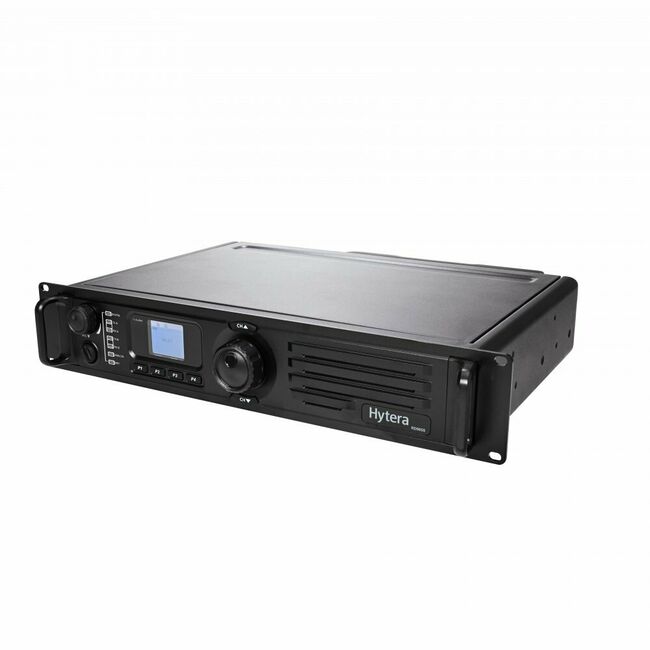

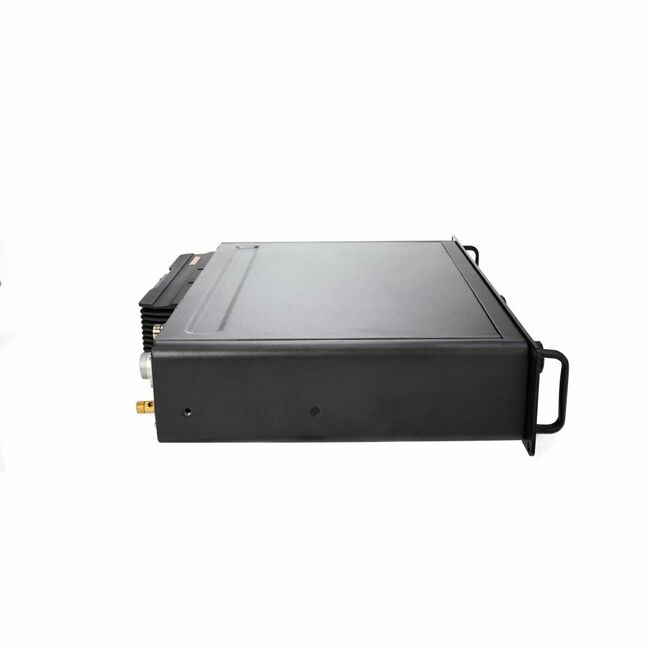

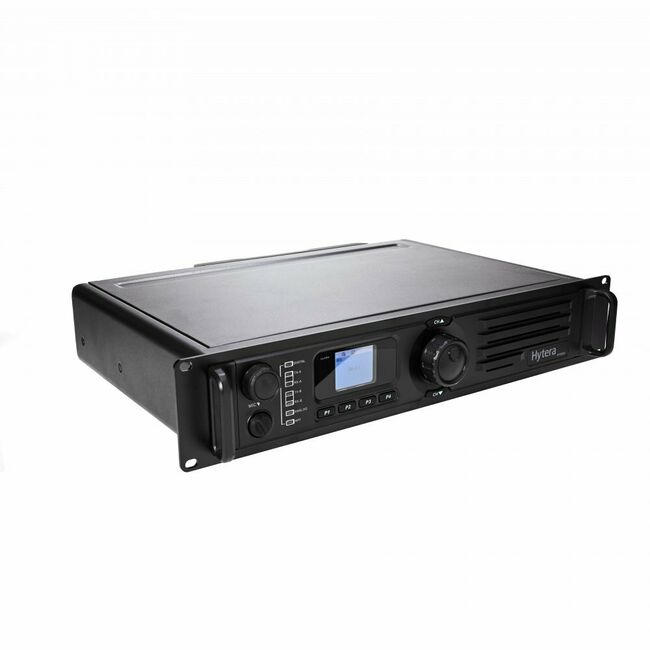

RD985S
Professional DMR repeater for large radio networks
Discontinuation Date: March 31st, 2024
The Hytera RD985S is an impressive digital systems repeater. Supporting conventional analogue and digital modes, it can also be used in DMR trunked radio systems (Tier III), and with up to 50W power is responsible for delivering excellent coverage in DMR simulcast and Hytera XPT systems.
For pricing and availability, use the link below to find and contact your local dealer.
Highlights
Comprehensive Network
All the repeaters from Hytera can be connected in digital mode via IP connection for multi-site requirements. Both in conventional analogue and DMR modes (DMR Tier II), the RD985S repeater can be used with the RD625 and RD965 repeaters to create an impressive network
Upgrade and Expand
The RD985s can be upgraded into a base station for DMR simulcast, DMR trunked radio or Hytera XPT radio systems, making it a secure investment for growing radio projects
Maximise Capacity
Thanks to the TDMA technology, twice as many users can use the same channel. With frequency scarcity, this represents an important relief and reduces the expense of system terminals and licenses
Professional Design
Integrated LEDs complement the sleek repeater design, while the integrated fan assembly provides high cooling capacity. Created with an intuitive interface, clear menus and the large navigation controller ensure it's simple to use
Secure Communication
Offering advanced digital encryption function, the RD985S can switch independently between digital and analogue modes, yet always ensuring the signal is protected
Functions
Mixed Mode Operation
This feature allows the device to automatically detect and switch between analogue and digital modes based on the signal received.
IP Site Connect
Create and control your network using IP (internet protocol) site connect.
Single-Site XPT
Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources across a single site more efficiently without needing a dedicated control channel (chargeable licence).
Multi-Site XPT
Extend your Hytera XPT network by connecting multiple sites over IP with simple router hardware (optional) and the additional chargeable licence.
Tier III Trunking
Upgraded via chargeable licence to be used as a two-carrier repeater in the Hytera Tier III trunking system
Digital Encryption
Ensuring your transmissions are always secure, advanced encryption available via a chargeable licence.
Powerful Repeater
100% continuous duty cycle from 1W to 50W
Wall Mounting and Racking
Optional brackets, simple, flexible installation utilising the specially designed wall mounting or racking.
Accessories for RD985S
Included as standard with RD985S
Mounting
Cables
Audio
Other
Related products that work with the RD985S
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz UHF1: 400-470MHz UHF2: 450-520MHz UHF3: 350-400MHz
- Channel Capacity
- 16
- Digital Protocol
- ETSI-TS102 361-1,2 & 3
- Supply Voltage
- DC +13.6v ± 15%
- Battery Backup
- YES via PSU
- Integral Battery Charging
- YES via PSU
- Dimensions(W×H×D)
- 88 x 483 x 366 (mm)
- Weight
- 8.5Kg
- Display
- 2.0'' 4 rows 160*128 pixels 262200 colours
- Programmable Buttons
- 4

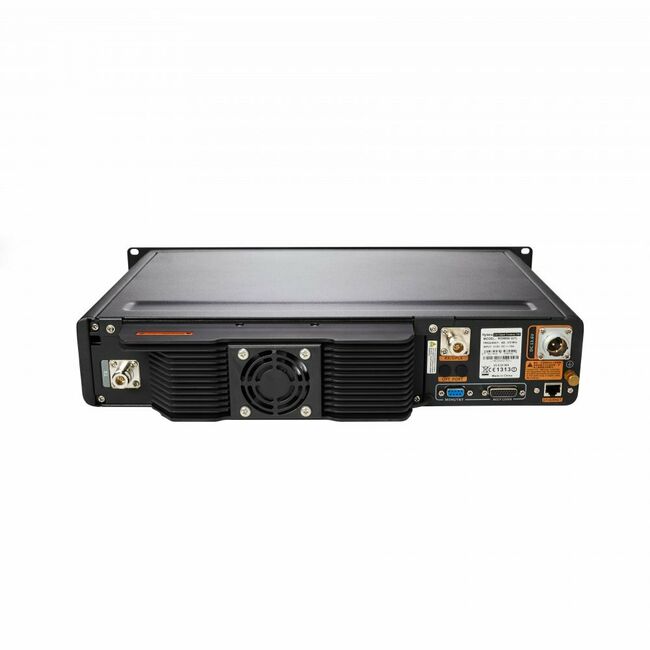

- TX Aerial Connector
- N-type socket
- RX Aerial Connector
- N-type socket
- Internal Duplexer
- YES using optional mounting kit
Features
- 19" Rack Mounting
- YES (2U required)
- Back Pack
- NO
- Multiple CTCSS/ CDCSS
- YES
- Repeater Knockdown
- YES (Analogue & Digital)
- IP Ports
- 1
- GPS
- NO
- Telemetry
- YES
- IP Site Connect
- Digital - YES Analogue - YES (R8.5 firmware)
- Audio Output for Slot A & B
- YES
- Remote Programming
- YES via IP interface
- Remote Diagnostic & Control
- Software available
- Emergency Mode
- NO
- Lone Worker
- NO
- Mandown
- NO
- Priority Scan
- YES
- Digital Encryption
- Advanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable licence file.
- Multiple Key Encryption Decode
- YES
- Multilanguage Menu
- YES
- Power on & off user logo programming
- YES
- Voice Interrupt
- Yes (latest firmware required and Smart Dispatch V4.5.6)
- Text Messaging
- Yes via application software
- Quick Text Messages
- Up to 25 pre-programmed via CPS (for telemetry use)
- MPT1327 / 1343 Trunking
- RD985s Operating mode to be specified with order
- Tier 3 Trunking
- RD985s only via firmware upgrade
- Over-the-Air Programming
- NO
- Analogue Only Version
- Not Available
- Number of Sites
- 16 sites (latest firmware required)
