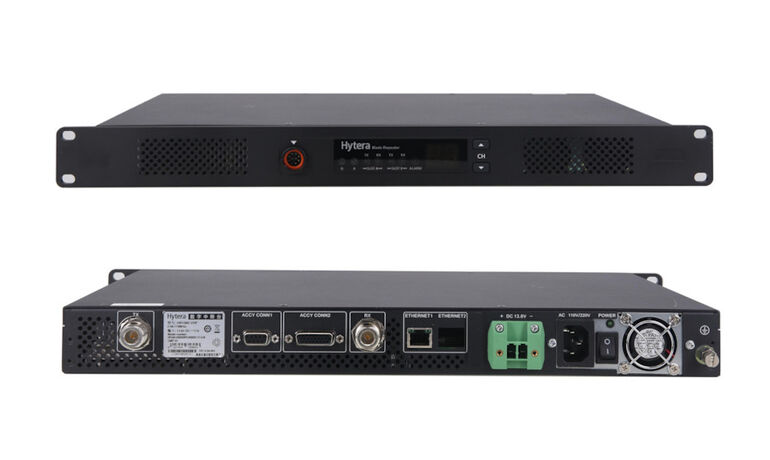

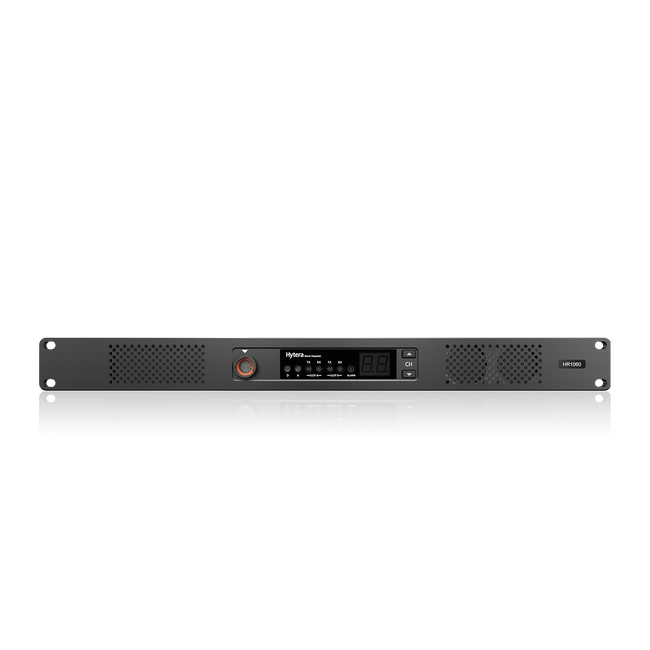

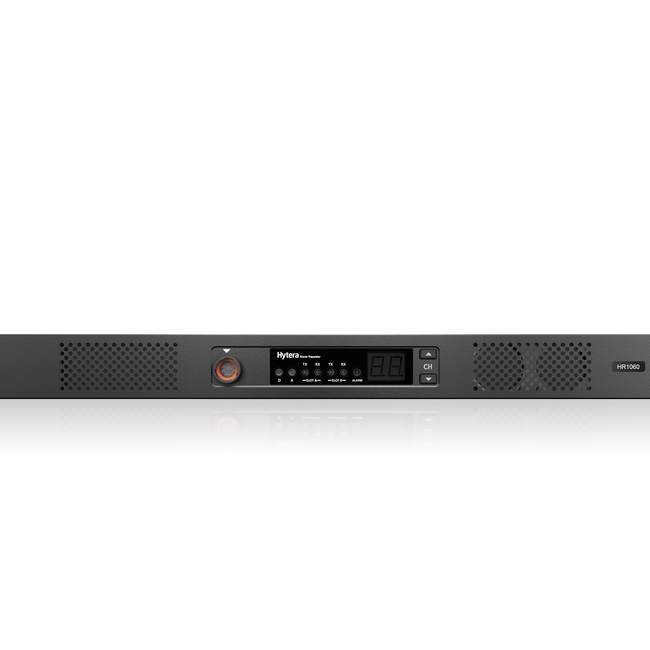

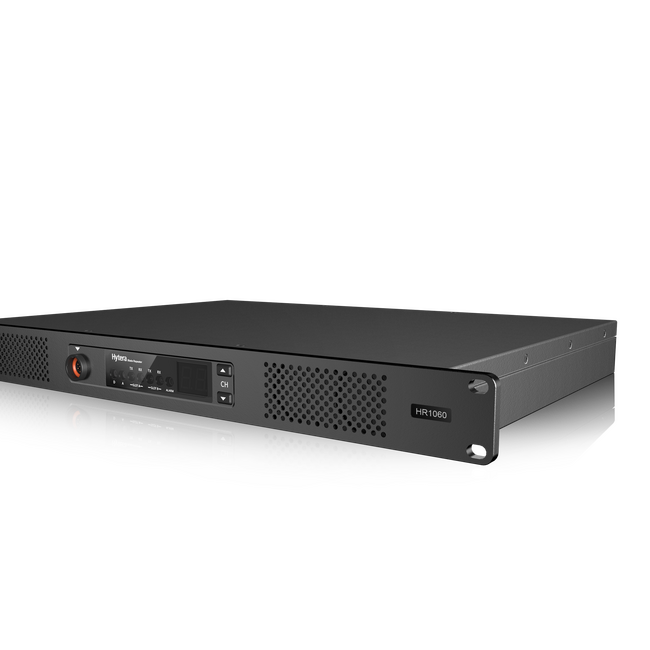

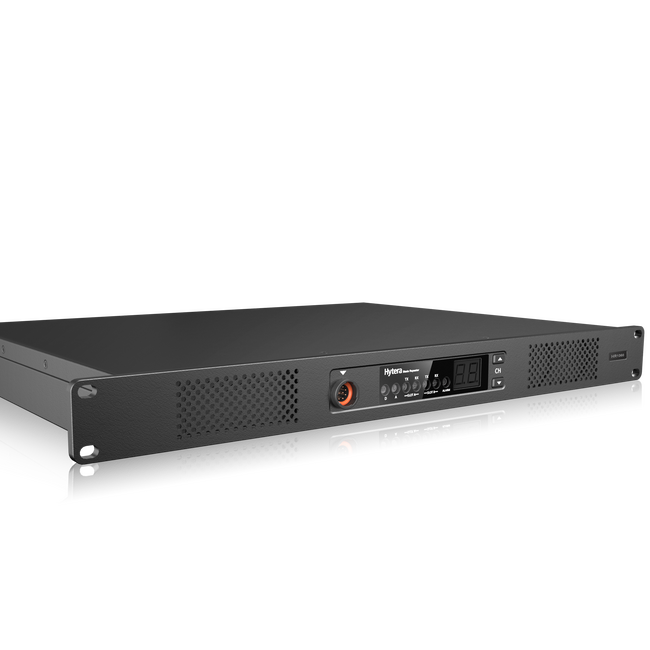

HR1065
Based on rich industry experience, customer feedback and technological evolution, Hytera has launched the next generation of the digital repeater. Smaller form factor, enhanced performance, remote management tools, and enhanced functionality provides a cost-effective solution
Highlights
Functions
Ultra-thin Modular
The 1U height of the HR106X series makes it compact, thus reducing space requirements for installation.
Outstanding Performance
Enhanced version with additional co-processor provides increased processing speed to increase data processing.
Cost-effective network construction
The enhanced version of HR106X can support integrated router and SIP gateway functionality, requiring fewer devices and simplified management and offering a cost-effective solution.
Convenient Management
In the enhanced version a web-based repeater management platform has designed to simplify repeater management. Configuration, upgrade and real-time diagnosis can all be completed through a web browser, which is ideal for remote management.
Accessories for HR1065
Included as standard with HR1065
Cables
Charger & Power
Audio
Related products that work with the HR1065
Technical Specifications
General
- Frequency Range
- UHF: 400-470MHz UHF: 136-174MHz
- Channel Capacity
- 64
- Supply Voltage
- DC +13.6v ± 15% AC 100-240V
- Dimensions(W×H×D)
- 44 x 483 x 366 mm
- Weight
- 5.8kg
Receiver
- Sensitivity
- Analogue: 0.18µV (12dB SINAD)
- Analogue: 0.16µV (12dB SINAD) (typical)
- Digital: 0.18µV / BER 5%
- Adjacent channel selectivity
- TIA-603: 65dB @12.5kHz / 75dB @20/25kHz
- ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
- Intermodulation
- TIA-603: 75 dB
- ETSI: 70 dB
- Spurious response rejection
- TIA-603: 80 dB
- ETSI: 80 dB
- Blocking
- 90 dB
- Hum and noise
- 40 dB @12.5kHz
- 43 dB @20kHz
- 45 dB @25kHz
- Conducted spurious emission
- @≤1GHz: ≤ -57 dBm
- @>1GHz: ≤ -47 dBm
- Rated audio distortion
- <3%
- Audio response
- +1 to -3 dB
Transmiter
- RF power output
- 5-50 W
- FM modulation
- 11K0F3E @12.5kHz
- 14K0F3E @20kHz
- 16K0F3E @25kHz
- 4FSK digital modulation
- 12.5kHz data only: 7K60FXD
- 12.5kHz data and voice: 7K60FXW
- Conducted/radiated emission
- operating: -36dBm @<1GHz; -30dBm @>1GHz
- standby: -57dBm @<1GHz, -47dBm @>1GHz
- Modulation limiting
- ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
- FM hum and noise
- 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
- Adjacent channel power
- 60dB @12.5kHz; 70dB @20/25kHz
- Audio response
- +1 to -3 dB
- Audio distortion
- <3%
- Audio distortion
- AMBE+2™
- Digital vocoder type
- ETSI-TS102 361-1,-2,-3
Environmental
- Operating temperature
- -30°C to +60°C
- Storage temperature
- -40°C to +85°C
