HP605

Handheld | DMR

Highlights

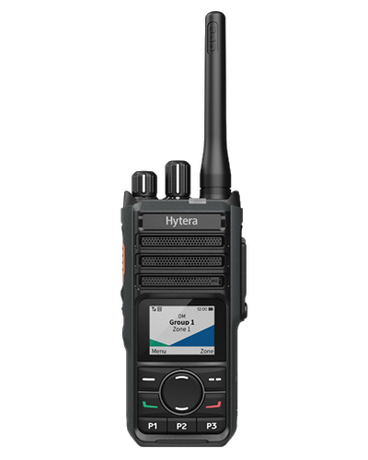

diagram indicating highlights of HP605

    Functions

    Created with Sketch. Clear Audio

    The HP60X uses the cutting-edge AI-based noise cancellation technology to decrease the unwanted background noise and reduce howling, maintaining high audio clarity. Users can now hear and be heard regardless of any noise.

    ic_insert_link Created with Sketch. Break Through the Distance

    When you go further out, you may encounter degraded communications due to a weak radio signal. With the 0.18μV (‒122dBm) sensitivity, the HP509 provides exceptional communication coverage. It ensures reliable communications even at the far edge of coverage with a weak signal. Wherever you go in the workplace, you can always keep connected.

    Created with Sketch. Long Battery Life

    The HP60X has a long battery life over 20 hours @ 5-5-90 as standard. Users no longer need to charge the radio or change the battery during their shift

    Created with Sketch. Rugged and Durable

    Manufactured to meet MIL-STD-810 G standard, the HP60X is IP67 rated and can withstand a 2-meter drop to stand up to a the toughest user environments

    Created with Sketch. GPS

    Optional, enabling location based services to improve safety and control.

    Created with Sketch. BLUETOOTH AUDIO

    Optional, wireless connectivity to audio devices to improve user experience.

    Created with Sketch. Advanced Encryption

    Optional, the advanced encryption provides a safer and more reliable encryption mechanism to protect communication security.

    Accessories for HP605

    Included as standard with HP605 Included as standard with HP605

    Battery

    Antenna

    Charger & Power

    Mounting

    Carrying

    Audio

    Cables

    Related products that work with the HP605

    Technical Specifications

    General

    Frequency Range
    VHF: 136-174MHz UHF1: 400-527MHz
    Channel Capacity
    48 (3 zones with 16 channels per zone)
    Battery Life (5-5-90 Duty Cycle)
    1500mAh, Analog 11h, Digital 16h
    Dimensions
    4.68" x 2.12" x 1.06", 119 x 54 x 27mm
    Weight
    10.22 oz, 290g (1500mAh Li-ion)
    Display
    NO
    Keypad
    NO
    Programmable Buttons
    1

    Receiver

    Sensitivity
    Analogue: 0.18µV (12dB SINAD)
    Analogue: 0.16µV (12dB SINAD) (typical)
    Digital: 0.18µV / BER 5%
    Selectivity
    TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
    ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
    Intermodulation
    TIA-603: 70 dB
    ETSI: 65 dB
    Spurious response rejection
    TIA-603: 70 dB
    ETSI: 70 dB
    Blocking
    TIA-603: 80 dB
    ETSI: 84 dB
    Hum and noise
    40 dB @12.5kHz
    43 dB @20kHz
    45 dB @25kHz
    Rated audio power output
    0.5 W
    Rated audio distortion
    <3%
    Audio response
    +1 to -3 dB
    Conducted spurious emission
    < -57 dBm

    Transmitter

    RF power output
    UHF: 1W / 4W
    VHF: 1W / 5W
    FM modulation
    11K0F3E @12.5kHz
    14K0F3E @20kHz
    16K0F3E @25kHz
    4FSK digital modulation
    12.5kHz data only: 7K60FXD
    12.5kHz data and voice: 7K60FXW
    Conducted/radiated emission
    -36dBm @<1GHz; -30dBm @>1GHz
    Modulation limiting
    ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
    FM hum and noise
    40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
    Adjacent channel power
    60dB @12.5kHz; 70dB @20/25kHz
    Audio distortion
    <3%
    Digital vocoder type
    AMBE+2™
    Digital protocol
    ETSI-TS102 361-1,-2,-3

    Environmental Specifications

    Dust & Water Intrusion
    IP67 Standard
    Operating Temperature
    -22° F to 140°F (-30°C to +60°C)

    Location Service

    GNSS
    GPS, GPS+GLONASS, GPS+BDS
    TTFF (time to first fix) cold start
    < 1 minute
    TTFF (time to first fix) hot start
    < 10 seconds
    Horizontal accuracy
    < 5 meters
