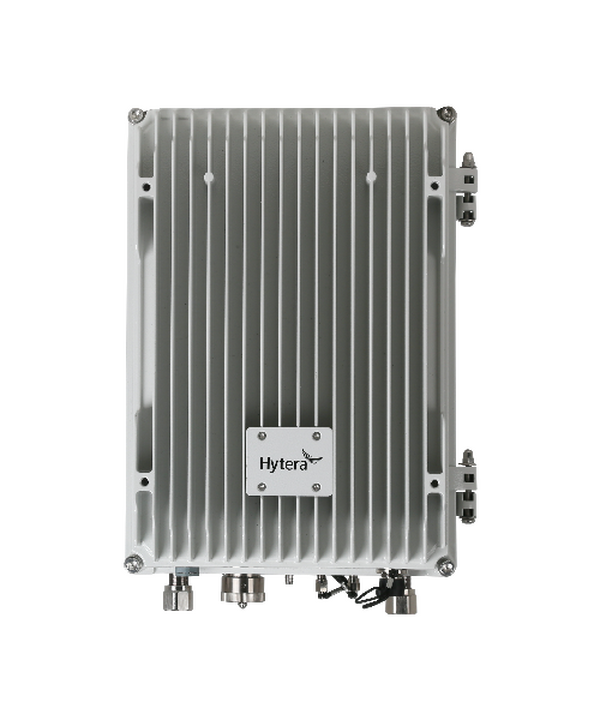

E-pole200

Repeaters & Systems | Fast Deployment | DMR

Highlights

Functions

Created with Sketch. Automatic networking

Up to 31 repeaters can interconnect with each other automatically without any IP link such as fiber optic and microwave. In this peer-to-peer network, the loss of one or more repeaters does not affect the network operation.

Created with Sketch. Flexible installation

The all-weather repeater can be mounted on the pole (such as a lamp-post) or the wall (such as a building wall), without relying on pre-existing infrastructure such as an equipment room.

Created with Sketch. High compatibility

The repeater is compatible with Hytera or third-party DMR Tier 2 radios, as well as Hytera first-generation ad-hoc products.

Created with Sketch. Various power supplies

The repeater can be powered by the battery, solar energy, or trunking base station (–48 V), meeting various scenarios.

Created with Sketch. LTE link for remote dispatch

The repeater can access the command and dispatch system through the public LTE network, not limited to the distance.

StayConnected-0x20 Extended communications range

The repeater at high altitude can transmit more than 50 km thanks to the 10-watt transmitting power. With the SIM card installed, the repeater can create networks at longer distances and communicate with the mobile phone.

Accessories for E-pole200

Included as standard with E-pole200 Included as standard with E-pole200

Related products that work with the E-pole200

Technical Specifications

General

Private network mode
DMR conventional
Node Capacity
31
Battery
DC 48 V
Frequency Range
350–400 MHz; 400–470 MHz
Channel Spacing
12.5 kHz
Current Drain(Standby)
< 1 A
Frequency Stability
±0.5 ppm
Antenna Impedance
50 Ω
Dimensions(H×W×D) mm
238.0 mm x 138.2 mm x 330.9 mm
Weight
5.2 kg

Receiver

RX Sensitivity(Static)
–122 dBm@5%BER
Adjacent Channel Selectivity
ETSI: 60 dB@12.5 kHz/70 dB@25 kHz
Intermodulation
≥ 70 dB
Spurious Response Rejection
≥ 70 dB
Blocking
84 dB
Conducted Spurious Emission
9 kHz to 1 GHz ≤ –57 dBm; 1 GHz to 12.75 GHz ≤ –47 dBm

Transmitter

Power Output
1 W/5 W/10 W, adjustable
Channel Power
60 dB@12.5 kHz; 70 dB@25 kHz
Vocoder Type
AMBE+2™/NVOC

Environmental

Operating Temperature
–30°C to +60°C
Storage Temperature
–40°C to +85°C
ESD
IEC 61000-4-2 (level 4); ±8 kV (contact discharge); ±15 kV (air discharge)
Dust & Water Protection
IP65
Humidity
MIL-STD-810 C/D/E/F/G
Vibration,Drop&Shock
MIL-STD-810 C/D/E/F/G

Location Service

GNSS
GPS
TTFF (time to first fix) cold start
< 1 minute
TTFF (time to first fix) hot start
< 1 second
Horizontal position accuracy
< 10 meters
Note
Suitable for long-term tracking (5 satellites visible at the rated signal strength of -130 dBm)
