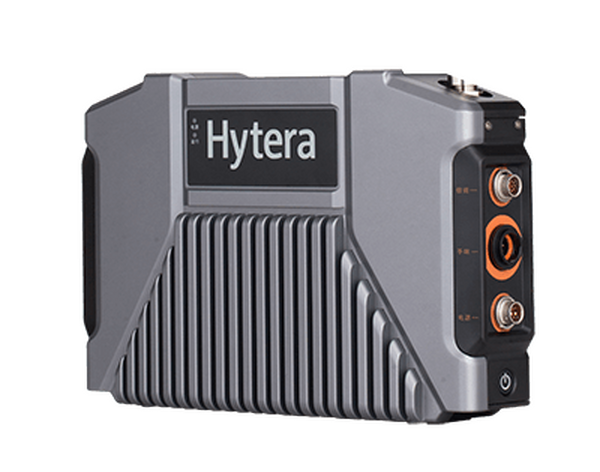

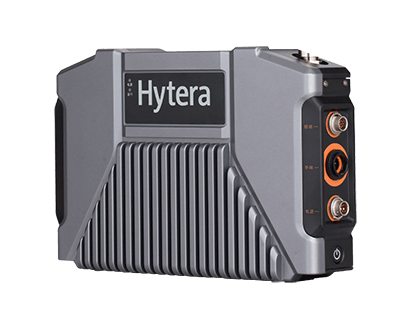

E-Pack 100 DMR
Digital Wireless Ad Hoc Repeater
Hytera E-Pack is intended for fast and flexible communication system deployment. The E-Pack can not only be used as a radio to make and receive calls, it also can also create a wireless mobile Ad Hoc network to route voice. One E-Pack can function as a radio, repeater, and mesh node with one frequency, greatly saving frequency resources.
With it’s light, small and IP67 design, the E-Pack can be installed in a vehicle, carried in a backpack, or be pole or wall-mounted making it suitable for deployment as temporary communication or to provide or extend indoor coverage.
Highlights
Functions
Wireless Mobile Ad-Hoc Networking
The Hytera E-Pack can create a wireless ad-hoc network, in which there are a maximum of 32 nodes. The ad-hoc network is self-configuring and dynamic in which E-Pack nodes are free to move.
Fast Deployment
Based on wireless mobile ad-hoc networking, the Hytera E-Pack is capable of creating and joining networks to deploy the communication system as soon as it is powered on.
Reliable Quality
Hytera E-pack is strictly compliant with MIL-STD-810 C/D/E/F/G standards and water and dust-proof rating to IP67, ensuring outstanding performance even in harsh environments.
Blind Area Coverage
Due to the high output power of the E-pack, communications will not be affected by the topology of the area, different floors or obstacles etc.
Accessories for E-Pack 100 DMR
Included as standard with E-Pack 100 DMR
Related products that work with the E-Pack 100 DMR
Technical Specifications
General
- Rated voltage
- DC 14.8V
- Protocol
- DMR Tier ll
- Input voltage
- 90·264VAC 50Hz/12·36VDC
- Battery capacity
- 185WH
- Charging time
- Rapid charge 2h 80%; 3h fully charged
- Battery life
- About 10 hours (15–85 duty cycle)
- Networking capacity
- 32
- Operating bandwidth
- 25KHz
- Channel spacing
- 12.5k
- Vocoder type
- AMBE++/NVOC
- Frequency stability
- ±0.5ppm
- American military standard
- MIL-STD-810 C/D/E/F/G
- Dust & water intrusion
- IP67
- Antenna impedance
- 50Ω
- Dimensions (LxWxD)
- 295 x 187 x 68mm
- Weight
- 3.6Kg (with battery)
- Storage temperature
- -40 °C to +85°C
- Operating temperature
- -30°C to +60°C
