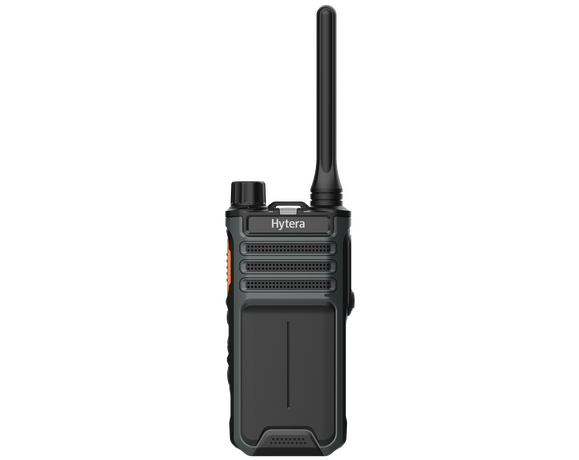

BP515
Highlights
Antenna
multiple sizes available
PTT Key
Push-to-talk key easily accessible
Aesthetic Design
For ease of use
Anti-Slip and Durable Texture
Anti-abrasive housing for better handling
Secure Interface
9 Pin Accessory Connector
Functions
Clear and Loud Audio
Light and compact with a built-in intelligent noise reduction algorithm, to eliminate unwanted background noise, supports three-level noise reduction adjustment so even if the other party is speaking in a noisy environment, you can still listen clearly. 3W high-power loudspeaker with a loudness of up to 90dBA, the sound is clear and loud even in noisy and other harsh conditions; good howling suppression ability, even if many people use the walkie-talkie in the same room, there will be no annoying howling sound.
High Energy Battery
The BP5 series uses international well-known brand batteries with a long service life. It still has 80% of the initial battery capacity after 500 charge-discharge cycles. The radio can be charged from 0% to 100% in only 1.8 hours. After charging for 1 hour it can work for 10 hours. A 10W rapid-rate charger ensures safe and reliable charging which can work in harsh environments such as high or low temperatures.
Digital and Analogue Compatible
Supports both digital and analogue modes, compatible with your existing digital and analogue systems and terminals. Powerful digital features like priority interrupt, basic encryption, text messaging and roaming will enhance your business service. The BP515 series has extended range in class and feature 64 channels, making group communication more flexible.
Excellent Coverage
The BP5 has a high sensitivity receiving module and high efficiency monopole antenna to enhance signal penetration and achieve better call affect even in weak signal areas. In addition, the monopole antenna has a unique thick screw thread design and is not easy to break and bend, it helps to enhance antenna life time and also increase the radiation efficiency compared to traditional antennas by 10% to extend radio communication distance.
Accessories for BP515
Included as standard with BP515
Carrying
Charger & Power
Audio
Related products that work with the BP515
Technical Specifications
General
- Frequency Range
- UHF: 400-470 MHZ
- VHF: 136-174 MHz
- Channel Capacity
- 64
- Zone Capacity
- 4
- Channels Per Zone
- 16
- Channel Spacing
- 12.5kHz/20kHz/25kHz
- Operating Voltage
- 7.4V
- Battery
- 1500mAh (Standard)
- 2000mAh (Optional)
- Battery Life (5/5/90 Duty Cycle, High TX Power)
- Analogue: 12h (1500mAh) 16h (2000mAh)
- Digital: 16h (1500mAh) 22h (2000mAh)
- Weight (with antenna & battery)
- 210g±5%g
- Dimensions (H x W x D)
- 115X54.5X29.5mm
- BT (optional)
- BT 5.0 BLE+EDR
Receiver
- Sensitivity
- Digital: 0.1 BμV / BERS%
- Analogue: 0.1 BμV (12dB SINAD)
- Adjacent Channel Selectivity
- TIA-603: 60dB@l 2.5kHz; 70dB@20/25kHz
- ETSI: 60dB@l 2.5kHz; 70dB@20/25kHz
- Intermodulation
- TIA-603: 70dB@l 2.5/20/25kHz
- ETSI: 65dB@l 2.5/20/25kHz
- Spurious Response Rejection
- TIA-603: 70dB@l 2.5/20/25kHz
- ETSI: 70dB@l 2.5/20/25kHz
- Blocking
- TIA-603: B0dB
- ETSI: 84dB
- Hum and Noise
- 40dB@l 2.5kHz; 43dB@20kHz; 45dB@25kHz
- Rated Audio Power Output
- 1W
- Rated Audio Distortion
- <3%
- Audio Response
- +1 to -3dB
- Conducted Spurious Emission
- <-57dBm
Transmitter
- RF Power Output
- VHF: 5W/1W
- UHF: 4W/1W
- FM Modulation
- 11 K0F3E@l 2.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
- Conducted/Radiated Emission
- -36dBm<lGHz; -30dBm>l GHz
- Modulation Limiting
- ±2.SkHz@l 2.SkHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
- FM Hum & Noise
- 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
- Adjacent Channel Power
- 60dB@12.5kHz; 70dB@20/25kHz
Environmental
- Operating Temperature
- -30°C ~ +60°C
- Storage Temperature
- -40°C ~ +85°C
- ESD
- IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air)
- Dust and Water Intrusion
- IEC60529-IP54
- Humidity
- MIL-STD-810 G
- Shock and Vibration
- MIL-STD-810 G
