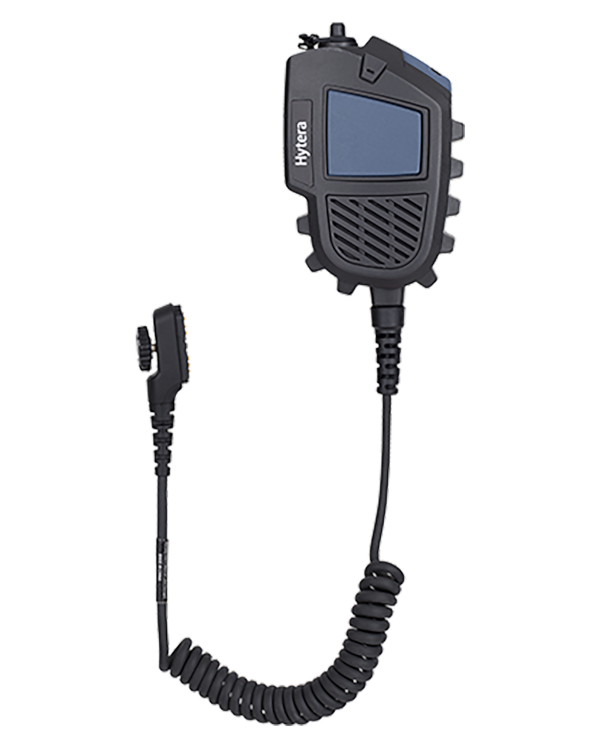

SM24N2-Ex

Audio

Highlights

Functions

Technical Specifications

PTT Key
Available
Emergency Key
None
Jack
16-pin connector
Microphone Sensitivity
-50±4dB@1kHz 3.0V 2.2K,0dB=1V/Pa
Speaker Impedance
20Ω±15% @ 1 kHz
Speaker Power
1 W (rated); 2 W (max.)
Speaker Frequency Response
94±3dB@1kHz 1w/30cm
Color
Blue & Black
Weight
About 230g
Operating Temperature
–20℃ to 55℃
Storage Temperature
–20℃ to 65℃
IP Rating
IP57
Anti-explosion levels
ib IIC Ex level
