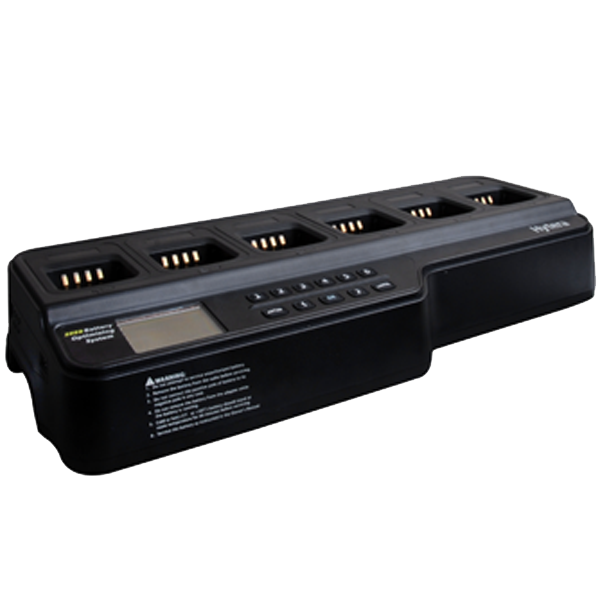

MCA05 (EOL)

Charger & Power

Highlights

Functions

Technical Specifications

Specifications

Supported battery type
Lithium-ion, Ni-MH battery
Dimensions (mm)
524.0 x 218.0 x 103.0
Weight
about 1.8 kg
Charge type
Multi-unit desktop charger and batterie analyser
Max. charging current
1000 mA per pocket
Number of pockets
6 units
Input
12 V DC / 7 A
Operating temperature
0°C to 40°C
Storage temperature
-20°C to 60°C
Certification
CE
Applicable Radios List
MCA05: PT580H, PT580H(UL913), PD70X, PD78X, PD75X, PD700Ex, PD780Ex, PD79X Ex, PD50X, PD56X, PD60X, PD66X, PD68X, PD70X(UL913), PD78X(UL913)
MCA05-X: X1e, X1p, X1p(UL913), Z1p
MCA05-A1: TC-700, TC-780, TC-700P, TC-780M, TC-700 Ex
MCA05-A2: TC-446S, TC-510, TC-508, TC-518, TC-560, TC-580, POWER245
MCA05-A3: TC-610, TC-620, POWER446, TC-610P
MCA05-G1: TC-880GM, TC-890GM
Standard Package includes:
1x Battery analyser
1x Power adapter (PS7501)
1x AC power cord (PWC03)
1x Documentation kit
