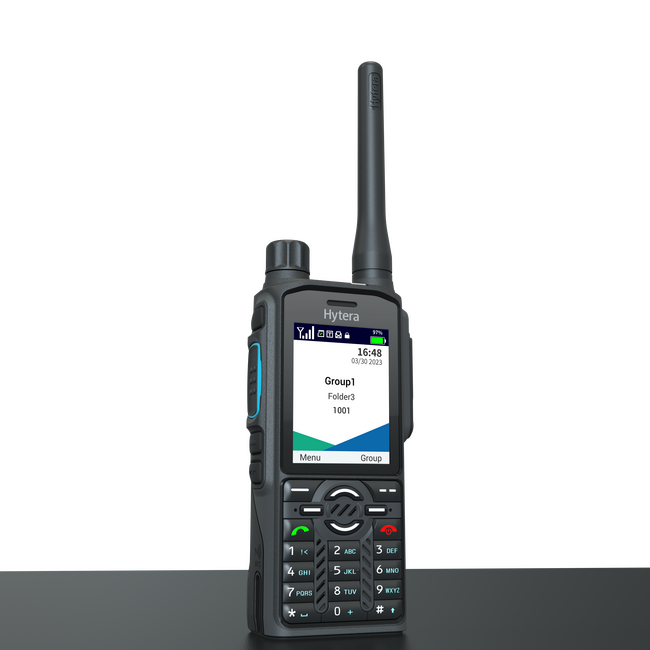

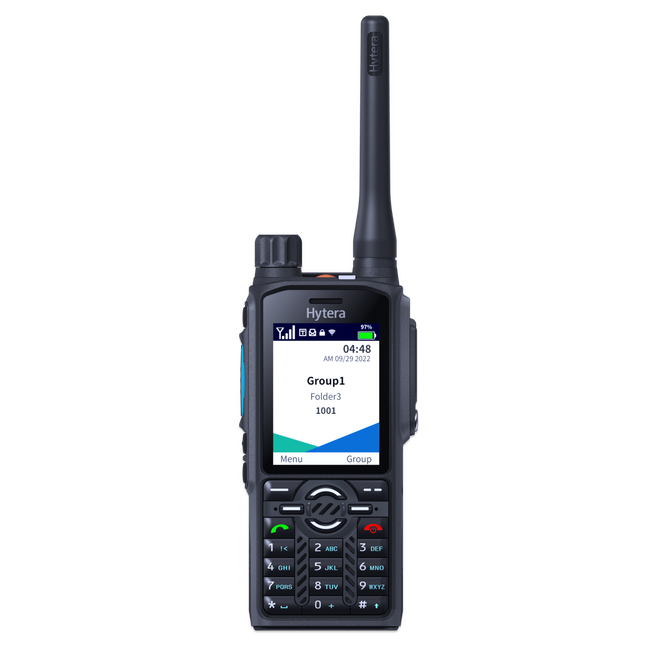

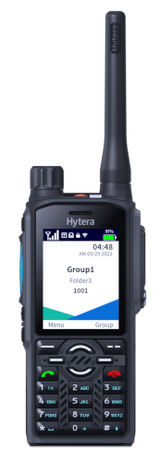

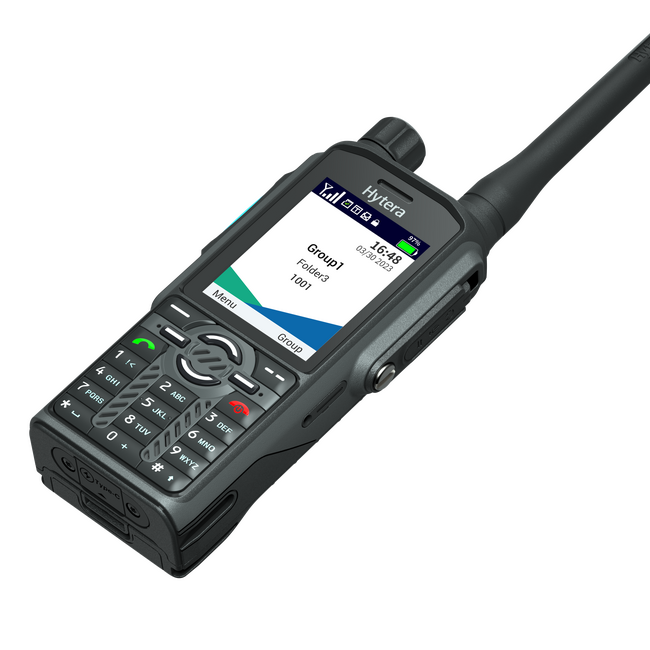

PT590

Handheld | TETRA

Highlights

diagram indicating highlights of PT590

    Functions

    Created with Sketch. Superior Audio Quality

    The PT590 is equipped with a powerful speaker with an innovative acoustic cavity design and a large acoustic aperture for 106 phon audio volume. It can help users hear clear sounds even in a noisy environment. Additionally, water porting technology is used to drain any water that enters the speaker cavity, ensuring sound clarity is maintained. AI-based noise cancellation technology reduces background noise and howling by up to 30 dB. No matter what noise environment the caller is in, it ensures that the called party hears clear sound.

    Pt590 superior audio quality

    Created with Sketch. Extended Radio Range

    The PT590 is trustworthy when your employees take it to work. With sustained and stable Class 3 transmit power (3W) and industry-leading receive sensitivity (-120 dBm), the PT590 ensures stable communication without loss of information, even at a distance or at the edge of radio coverage. Your employees stay connected anytime, anywhere.

    Pt590 extend radio range

    Created with Sketch. Accurate Positioning

    The PT590 utilizes dual-frequency positioning technology in an unprecedented way. By simultaneously receiving and processing satellite signals in two frequency bands, signal distortions are effectively compensated and corrected. This improves the positioning accuracy of the PT590 to an industry-leading level – within 1 meter.

    Pt590 gps

    Icon 24px Created with Sketch. Better User Friendliness

    This wonderfully light and surprisingly slim radio weighs just 285g and is 31mm deep. It is easy to carry throughout the day and convenient to use with one hand. The large textured PTT button and independent four navigation buttons are more user-friendly. The PT590's 2.4-inch LCD screen is semi-transparent and semi-reflective, ensuring clear readability in direct sunlight and reducing eye strain. The PT590 features a new, user-friendly UI design that helps your staff access the function directly with 9 icons arranged in two dimensions.

    Pt590 better user friendliness

    Created with Sketch. Long Lasting Battery

    The 2,000mAh Li-Polymer battery, along with innovative low power consumption technology, can last up to 22 hours on the 5-5-90 operating cycle. In addition to the conventional charging contacts, the PT590 has an additional USB Type-C port, which can be used to charge the radio anywhere and at any time using mains power or even the power bank. With 18W fast charging, the PT590 can be fully charged in just 1.5 hours. Even a 30-minute quick charge can give the PT590 at least 10 hours of power for unexpectedly long shifts.

    Pt590 long lasting battery

    Created with Sketch. Control Your Radio on Voice*

    We introduced voice control for the first time on the PT590. This feature supports group calls, talk group change, and feature switching such as turning on BT or location services. This allows users to concentrate on what they are doing while making the voice-activated call. (only supported by Advanced version, to be launched soon)

    Pt590 voice control command

    Created with Sketch. Professional USB Type-C Port

    Besides the charging function, this USB Type-C port provides programming and upgrading functions as well. This unique design brings you unprecedented convenience especially when no programming cable is available at hand. To ensure the reliability of this port, advanced nano-coating technology is adopted to protect the internal structure from corrosion and oxidation. This helps ensure a stable connection after a long time of use.

    Pt590 professional usb type c port

    Accessories for PT590

    Included as standard with PT590 Included as standard with PT590

    Related products that work with the PT590

    Technical Specifications

    General

    Frequency Range
    Fv: 380-475 MHz
    Dimensions (H×W×D) mm
    125 x 55 x 31 mm
    Weight
    285 g
    Operating Voltage
    7.7 V
    Battery
    2000mAh
    Battery Life (TMO 5/5/90 duty cycle)
    >22 hours

    User Interface

    Display
    2.4 inch, 320*240 pixels, 262K colors
    Talk Group-TMO
    12000
    Talk Group-DMO
    6000
    Telephone book
    2000
    Inbox
    ≤550
    Outbox
    ≤550
    Drafts
    ≤550
    Folder-TMO
    200
    Folder-DMO
    50
    State Message
    200

    RF Specifications

    Channel Bandwidth
    25 kHz
    RF Power Output
    3 W
    RF Power Level Accuracy
    ±2 dB
    RF Power Control
    5 dB per step
    Receiver Class
    ETSI EN 392-2/396-2 Class A and Class B
    RX Sensitivity (static)
    -118 dBm (min)
    -120 dBm (typical)
    RX Sensitivity (dynamic)
    -108 dBm (min)
    -110 dBm (typical)
    Audio Power Output
    2 W (Peak 3 W)

    GPS Specifications

    RX sensitivity
    -149 dBm acquisition sensitivity
    165 dBm tracking sensitivity
    Horizontal position accuracy
    <1.0 m (95% Probable, -130 dBm)
    TTFF (time to first fix) cold start
    <35 seconds
    TTFF (time to first fix) hot start
    <1 seconds
    Conditions:
    Open Sky environment
    -130 dBm signal strength
    24 H static

    Environmental

    Operating temperature
    -20°C to + 60°C
    -30°C to + 70°C (limited performance)
    Storage temperature
    -40°C to + 85°C
    Dust & water protection
    IP65, IP66, IP67, IP68 (2 m, 4 h)
    Humidity
    <95%
    Vibration, drop & shock
    MIL-STD-810 H
    EN300 019-1-7 5M3
    GJB150A
