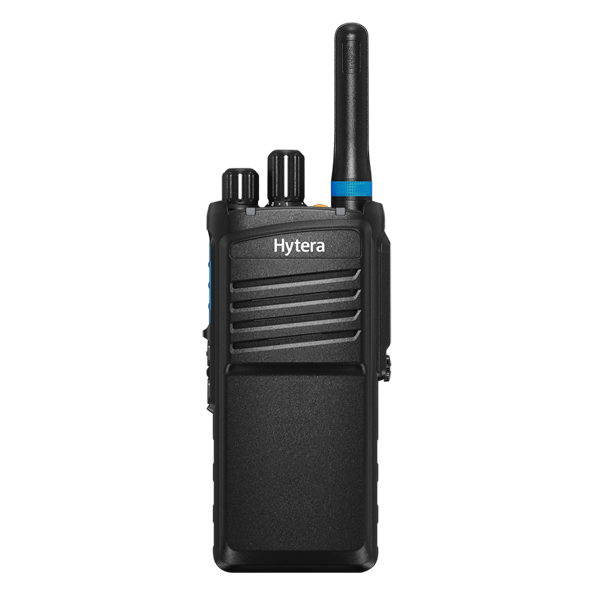

PT310

Handheld | TETRA

Highlights

Functions

Accessories for PT310

Included as standard with PT310 Included as standard with PT310

Related products that work with the PT310

Technical Specifications

General

Frequency Range
320-475MHz 806-870MHz
Dimensions(H×W×D) mm
123.5 × 55.5 × 32.5
Weight
265g±5g(with standard battery and antenna)
Battery
3800mAH Li-lon battery
Battery Life (TMO 5/5/90 duty cycle)
>22hours
Operating Voltage
3.85V

RF Performance

Channel Bandwidth
25KHz
RF Power Output
1.8W
RF Power Level Accuracy
±2dB
Receiver Class
ETSI EN 392-2/396-2 Class A and Class B
RX Sensitivity(Static)
≤-116dBm(typical-118dBm)
RX Sensitivity(Dynamic)
≤-107dBm(typical-109dBm)
Audio Power Output
2W(Max: 3W)

GPS

RX Sensitivity
-148dBm acquisition sensitivity -162dBm tracking sensitivity
Horizontal Position Accuracy
<2.5m, CEP, 50%
Cold Start (Time to First Fix)
30s
Hot Start (Time to First Fix)
1s
Note
Conditions: Open Sky environment, -130dBm signal strength, 24H static

Environmental

Operating Temperature
-20℃ ~ +60℃ -30℃ ~ +70℃(performance limited)
Storage Temperature
-40℃ ~ +85℃
Humidity
ETS 300 019-1-7 Class 7.3E MIL-STD-810 G
Dust & Water Protection
IP65/IP66/IP67/IP68 Per IEC60529
Vibration,Drop&Shock
ETS 300 019-1-7 Class 5M3 MIL-STD-810 G GJB150A-2009
