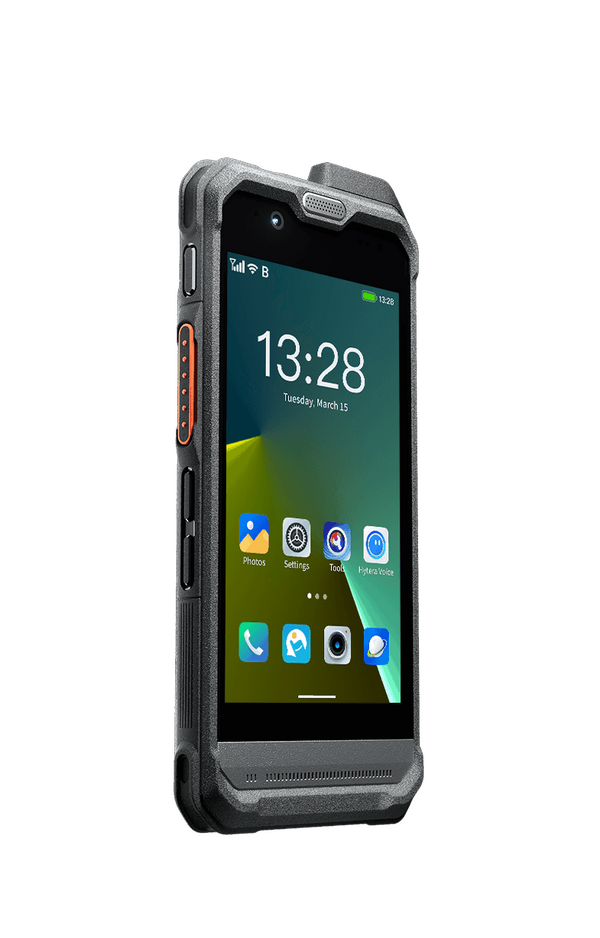

PNC460U
Intrinsically Safe Smart Device
The PNC460U is a UL913-certified intrinsically safe smart device with the capabilities of large-screen smartphone and push-to-talk over cellular (PoC) radio rolled into one. It provides purpose-built apps, instant PoC calls, video-based dispatch, and more to get things done in less time and with less hassle. Work safer. Work more efficiently.
Highlights
Functions
Enhance Workplace Safety
The PNC460U is designed for hazardous locations with potentially explosive gas and combustible dust, in compliance with the explosion-proof requirements for use in Class I, II, III; Division 1; Groups C–G; T4 and -20°C to +60°C. So the PNC460U can always provide reliable communications and efficient services for you, even in extreme working environments.
Simplify Your Workday
With the Android 12 OS, the PNC460U delivers the familiar experience and ease of use that the professionals want. More importantly, it provides an open and inclusive platform to run a wide variety of key apps making everyday tasks easier and faster.
Exceptional Durability
The PNC460U is perfect for professionals working in the most demanding environments. lt has tough exteriors and reinforced components to survive dust, water, snow, 1.5-meter sudden drops, extreme temperatures (-20℃ to +60℃), and more.
Large HD Screen
As a good assistant, the PNC460U helps you work more efficiently. The stunning 5-inch screen gives you plenty of space to use multiple apps at work. Additionally, this screen is sunlight readable and sensitive enough to react to the touch of gloved hands and wet fingers.
Precise Positioning
Thanks to the built-in dual-frequency GPS (L1+L5) chip, the PNC460U provides the real-time, precise location for the dispatcher with the accuracy improved to 2 meters. Know where your devices are. Keep your personnel safe.
Loud and Clear Audio
With powerful speakers and sophisticated noise cancellation technologies, the PNC460U delivers crystal-clear audio in any noisy environment, such as oil exploration sites, petrochemical plants, and refineries.
External Antenna
Unlike the radios with the built-in antenna, the PNC460U comes with an external antenna that has a 70% higher RX capability. So even in the area with weak signal strength, the PNC460U still conveys accurate information without missing any words.
Powerful Camera System
The PNC460U has unmatched photography capabilities, thanks to a 50 MP rear camera, HDR technology, and image stabilization algorithm. It can capture clear pictures and stable live videos in the field, and feed them to the command center in real time over the LTE or WLAN network.
Push-to-Talk
With the Hytera HyTalk Pro app, the PNC460U can communicate with PDT, DMR, or TETRA radios over the 2G, 3G, LTE or WLAN network. It delivers instant one-to-one or one-to-group communications anywhere in the world once you press down the tactile and large PTT key. This ensures the flow of information at all time, even during the most critical circumstances.
Accessories for PNC460U
Included as standard with PNC460U
Charger & Power
Related products that work with the PNC460U
LTE-PMR Convergence Solution
Technical Specifications
Wireless Data Communication
- LTE
- TDD-LTE: B34/B38/B39/B40/B41 (2496–2690 MHz); FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28
- WCDMA
- B1/B2/B3/B4/B5/B8
- GSM
- 850/900/1800/1900
- WLAN
- Support
- NFC
- Support
- BT
- BT 5.0
- Positioning
- GPS (L1&L5)/A-GPS/BDS/GLONASS/Galileo
General
- Dimensions(H×W×D) mm
- 164×77×23mm
- Weight
- About 337g
- Operating System
- Android 12
- Memory
- 6GB RAM + 128GB ROM
- Sensors
- Acceleration/gyroscope/geomagnetic/opto-sensor
- Peripheral Interface
- USB Type-C port; 3.5 mm audio jack
- Display
- 1920×1080, 5.0 inches
- Card Slots
- 2 × Nano-SIM
- Camera
- Rear: 50 MP; Front: 8 MP
- Battery
- 4,580 mAh
Environmental
- Operating Temperature
- ‒20°C ~ +60°C
- Storage Temperature
- ‒30°C ~ +70°C
- ESD
- IEC 61000-4-2 ±12 kV (air) ±6 kV (contact)
- Dust & Water Protection
- IP68
- Vibration,Drop&Shock
- 1.5m
Certification
- Certification
- UL913/CE/MIL-STD-810/IP68
