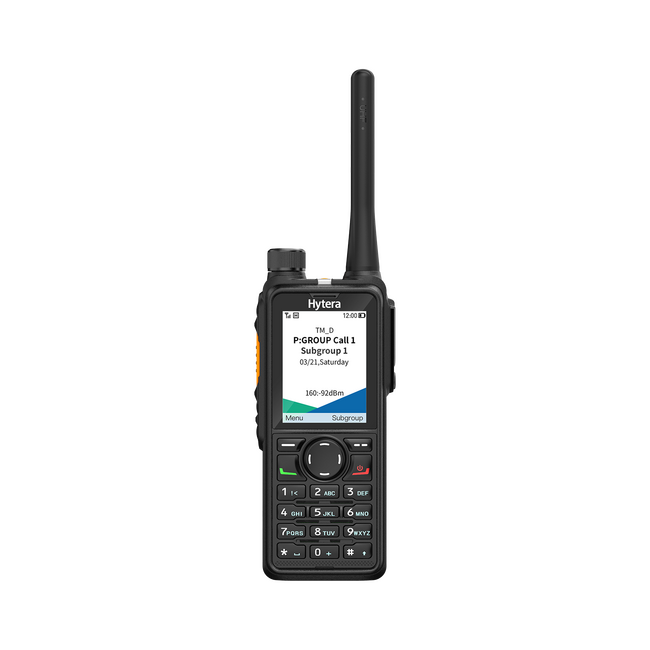

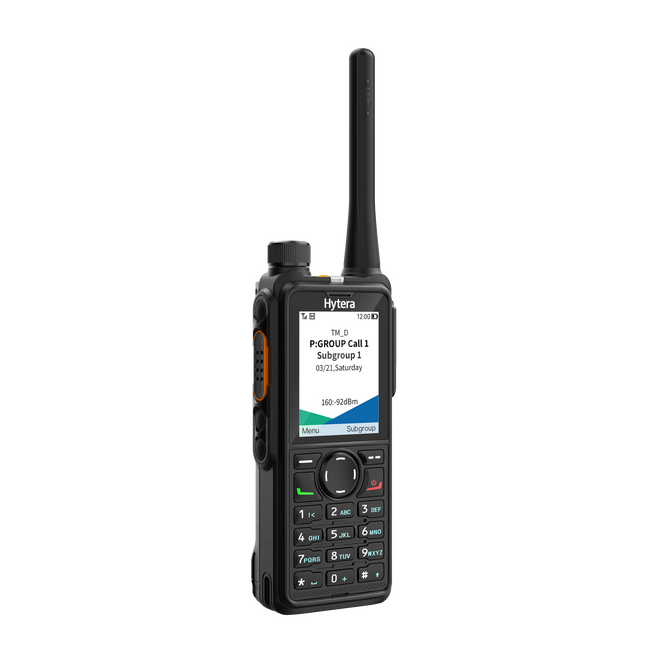

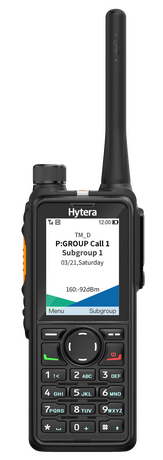

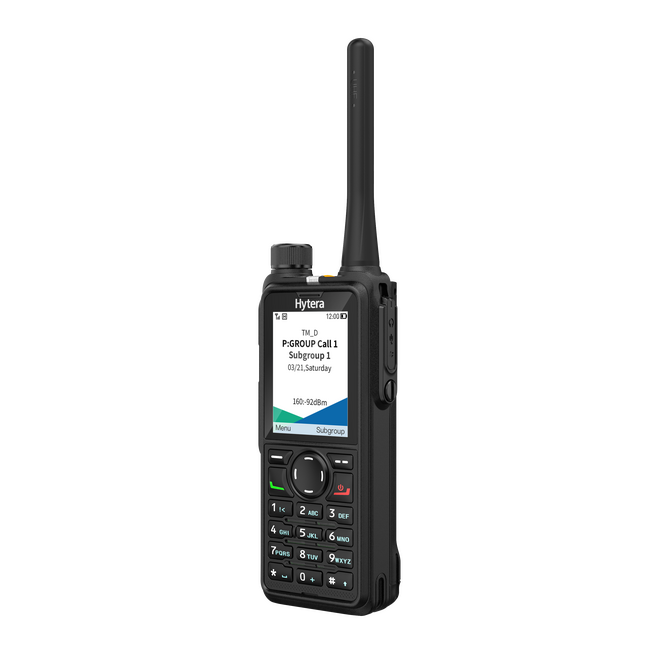

HP78X
The HP78X represents the future on style and functions that refreshes the standards in digital radios, providing more efficient and more reliable communication with loud and clear audio, powerful battery, remarkable portability and ruggedness for ease of use across multiple environments and industries.
Highlights
Functions
Thinner and Lighter
An optimized mechanical design and a compact lithium polymer battery which fits discreetly into the HP78X's design makes the radio only 29.5mm thick and 3100g in weight.
Enhanced Coverage
Increased receiver sensitivity extends the coverage range and improves audio quality in weak signal areas
Big Display and New UI
The 2.4-inch colour display provides a brand new intuitive UI to improve the user experience. A Quick Access Menu that allows users to access frequently used menus more easily.Messages are listed in conversation for quick reading and review. User profiles can be configured to set audio parameters for different operating environments
Louder and Clearer Audio
The HP78X has louder and clearer audio though an optimized forward facing speaker and AI-based noise cancellation that decreases the unwanted background noise and howling and improves communication efficiency.
Longer Battery Life
The latest in proven lithium polymer technology is used in the battery used with the HP78X . The battery is lighter and smaller than ever before, yet still delivers 24 hours of battery life (5/5/90) to provide radio operation for your entire shift.
Higher Level of Ruggedness
HP782 is designed as per the MIL-STD-810G. It is IP68 rated, impervious to water jets and submersible to a depth of 2 meters for 4 hours, and also resilient to 2-meter drops onto concrete. No matter where the mission drives the officer, the HP782 is the partner to count on, because it can stand up to the toughest environment.
Accessories for HP78X
Included as standard with HP78X
Battery
Antenna
Charger & Power
Mounting
Audio
Cables
Carrying
Related products that work with the HP78X
Technical Specifications
General
- Frequency Range
- UHF: 350-470 MHz VHF: 136-174 MHz
- Channel Capacity
- 1024
- Zone Capacity
- 64
- Dimensions(W×H×D)
- 132 x 55 x 29.5mm
- Weight
- 310g
- Display
- 2.4 inch LCD
- Keypad
- Full Keypad
- Battery Life (5-5-90 Duty Cycle)
- 24h (GNSS disabled) 20h (GNSS enabled)
Receiver
- Sensitivity
- Analogue: 0.18µV (12dB SINAD)
- Analogue: 0.16µV (12dB SINAD) (typical)
- Digital: 0.18µV / BER 5%
- Selectivity
- TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
- ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
- Intermodulation
- TIA-603: 70 dB
- ETSI: 65 dB
- Spurious response rejection
- TIA-603: 70 dB
- ETSI: 70 dB
- Blocking
- TIA-603: 80 dB
- ETSI: 84 dB
- Hum and noise
- 40 dB @12.5kHz
- 43 dB @20kHz
- 45 dB @25kHz
- Related audio power output
- 0.5 W
- Rated audio distortion
- <3%
- Audio response
- +1 to -3 dB
- Conducted spurious emission
- < -57 dBm
Transmitter
- RF power output
- UHF: 1W / 4W
- VHF: 1W / 5W
- FM modulation
- 11K0F3E @12.5kHz
- 14K0F3E @20kHz
- 16K0F3E @25kHz
- 4FSK digital modulation
- 12.5kHz data only: 7K60FXD
- 12.5kHz data and voice: 7K60FXW
- Conducted/radiated emission
- -36dBm @<1GHz; -30dBm @>1GHz
- Modulation limiting
- ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
- FM hum and noise
- 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
- Adjacent channel power
- 60dB @12.5kHz; 70dB @20/25kHz
- Audio response
- +1 to -3 dB
- Audio distortion
- <3%
- Digital vocoder type
- AMBE+2™
- Digital protocol
- ETSI-TS102 361-1,-2,-3,-4
Environmental Specifications
- Dust & Water Intrusion
- IP68
- Humidity
- MIL-STD-810G
- Shock and Vibration
- MIL-STD-810G
Location Service
- GNSS
- GPS, GPS+GLONASS, GPS+BDS
- TTFF (time to first fix) cold start
- < 1 minute
- TTFF (time to first fix) hot start
- < 10 seconds
- Horizontal accuracy
- < 5 meters
