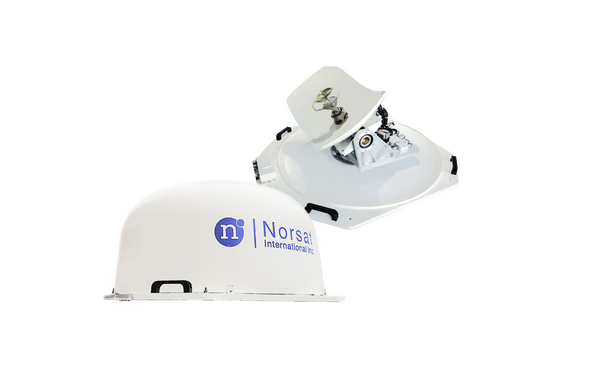

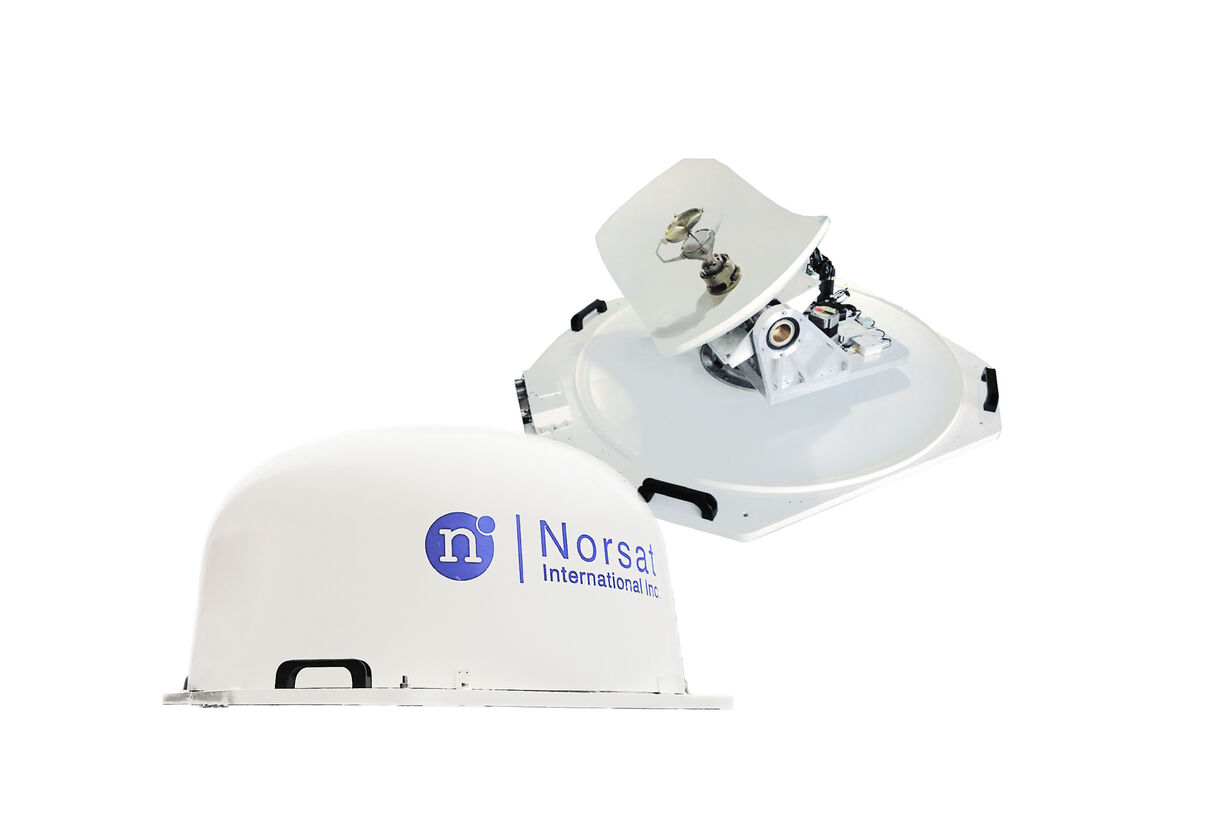

Military Communications-on-the-Move (COTM) Terminal System
The COTM terminal is Norsat’s solution for reliable and easy-to-deploy mobile communications. The solid, low weight, and low height reflector mount deploys easily for fast and reliable satellite acquisition and tracking. It can provide continuous communication no matter vehicle drives on straight curved, or bumy roads at high speed.
Highlights
Functions
Extend Ku-band
LOW overall SWaP - for easy integration with military vehicle
Ruggedized for military application
Full range of RF Tx and Rx options available
Accessories for COTM Terminal System
Included as standard with COTM Terminal System
Related products that work with the COTM Terminal System
Technical Specifications
Antenna Unit
- Antenna Type
- Low profile parabolic
- Dish Diameter
- 55 cm (22”)
- Outdoor Unit Size
- 1069 mm x 965 mm x 495 mm
- Outdoor Unit Weight
- 52Kg (excluding BUC, LNB)
- Radome Insertion Loss
- ≤ 0.3dB
- Operating Platform
- 2-Axis
- Skew Control
- Automatic (-90˚ to +90˚)
- Elevation Angle
- 0˚ to +90˚
- Azimuth Angle
- 360˚ continuous
- Tracking Speed
- Azimuth: ≤ 60 °/s Elevation: ≤60 °/s Pol: ≤40 °/s
- Acceleration
- Azimuth: ≥200°/s2 Elevation: ≥200°/s2
- Auto Acquisition Satellite Time
- Initial acquisition satellite time: ≤ 3min Blockage recovery time: ≤ 5 s Blockage 20min
- Temperature
- -40˚ to +55˚ (Operational) -50˚ to +70˚ (Storage)
- Humidity
- Up to 95%
- Operating Wind Loading
- 21m/s
- Survival wind Loading
- 35m/s
Antenna Controller
- ACU Size
- 19” Rack 1U size
- External I/O
- RS232C, Ethernet
- Input Power
- 220 VAC 50 Hz
- Output power
- 48VDC
Packing
- Size
- 1365 x 1245 x 555 mm
- Packed by
- Wooden case
