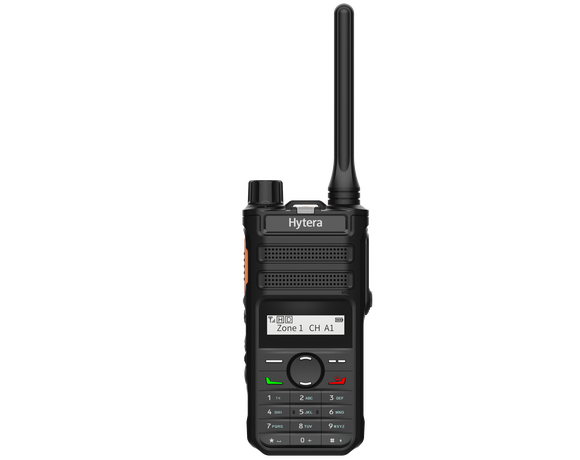

AP585

Handheld | Analogue

Analogue Radio

The AP585 series business radio is the perfect choice for instant communication. With a 3W speaker, the compact and light AP5 series can deliver loud and clear audio that allows you to hear and be heard in background noise. It has an incredibly long 18-hour battery life in its most minimal form. Type-C USB charge plug allows users to charge the radio with a power bank anywhere. With the extended range and a bunch of productivity and efficiency increasing features, the AP5 series will ensure you stay connected and productive.

Download brochure

Highlights

diagram indicating highlights of AP585

Long Life Keypad

Highly durable

Anti-Slip and Durable Texture

Better handling

Secure Interface

9 Pin Accessory Connector

Functions

Scrambler

Protects your voice communications against casual listeners. Inverts and restores the frequency spectrum of a certain frequency point to encrypt the voice

Scan

Allows you to listen to activities on other channels, keeping track of your colleagues

Around

Allows you to continue communication in direct mode when the repeater malfunctions or the radio is out of the coverage of the repeater

AP5 02

Accessories for AP585

Included as standard with AP585

Charger & Power

CHV09

Vehicle Power Adapter

PS2024

Power Adapter (UK)

PS2025

Power Adapter (EU)

PS2030

Power Adapter (EU/UK)

MCA08

Six-Unit Charger Including Power Adapter

CH10A07

Hytera Ch10 A07

MCU Rapid-Rate Charger

Audio

SM08N3-P (EOL)

SM08 N1 470x558

Remote Speaker Microphone, IP54 with 3.5mm audio jack

SM50N1-P

SM50 N1 P 260x220

Remote Speaker Microphone, IP54 with 3.5mm audio jack

Carrying

RO03

Wrist Strap

Related products that work with the AP585

AP515

Analogue Radio

Technical Specifications

General

Frequency Range: 400-470MHz
: 136-174MHz
Channel Capacity: 128
Zone Capacity: 8
Channels Per Zone: 16
Channel Spacing: 12.5kHz/20kHz/25kHz
Operating Voltage: 7.4V (rated)
Battery: 1500mAh 7.4V
: 2000mAh 7.4V (Optional)
Battery Life (5/5/90 Duty Cycle, High TX Power): 12h (1500mAh)
: 16h (2000mAh)
Dimensions (H x W x D): 115*55*29.5mm
Weight (with antenna & battery): 230g±5g
Display: 1.44 inch LCD
BT (optional): BT 5.0 BLE+EDR

Receiver

Sensitivity: 0.18μV (12dB SINAD)
Hum and Noise: 40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output: 1W
Rated Audio Distortion: ≤3%
Audio Response: +1~-3dB

Transmitter

RF Power Output: VHF: 5W / 1W
: UHF: 4W / 1W
FM Modulation: 11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
Modulation Limiting: ±2.5kHz@12.5kHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
Conducted/Radiated Emission: -36dBm＜1GHz; -30dBm＞1GHz

Environmental

Operating Temperature: -20℃ to +60℃
Storage Temperature: -40℃ to +85℃
ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion: IEC60529-IP54 (IP67 optional)
Humidity: MIL-STD-810 G
Shock and Vibration: MIL-STD-810 G
