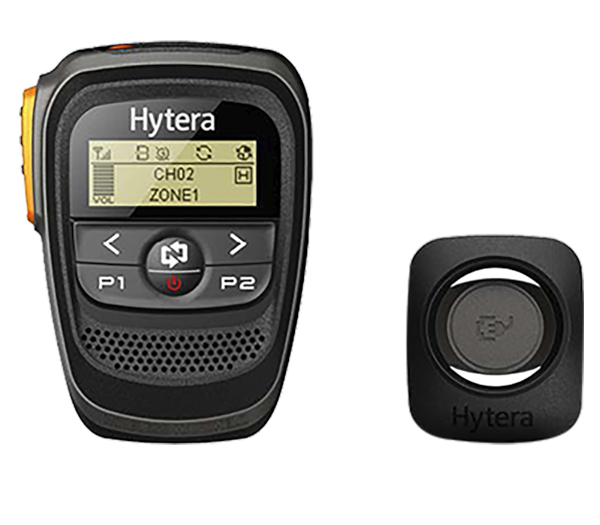

SM27W1
Wireless Speaker Microphone
Wireless speaker microphone with LCD display offers flexibility and convenience when using mobile radios.
Highlights
Functions
Technical Specifications
Specifications
- Dimensions (mm)
- 86.2 x 62.6 x 43 mm
- Weight
- about 120 g
- Color
- black
- PTT key
- available
- Emergency key
- available
- Microphone sensitivity
- –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker power
- 2 W (rated); 2.5 W (max.)
- Speaker impedance
- 4 Ω±15% @ 1 kHz
- Speaker frequency response
- 83±4 dB @ 1 kHz 1 W/100 cm
- Bluetooth version
- BT V4.0
- Bluetooth communication range
- 8-10 m
- Certfification
- CE, FCC, and IC
- Battery life (5/5/90)
- ≥ 15 h
- Charging time
- ≤ 3.5 h
- Ingress protection
- IP54
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -20°C to 60°C
- PTT cycles
- ≥ 100,000
- Suitable radios
- MD655, MD785G, MD785i, HM655, HM685, HM785
