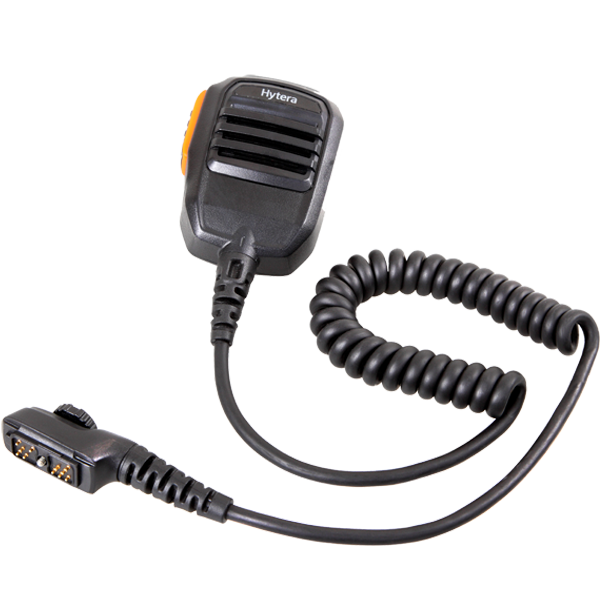

SM18N5
Remote Speaker Microphone with Emergency Call Button (IP67)
IP67 compliant remote speaker microphone with emergency alarm capability and swivel metal clip for ease of use.
Highlights
Functions
Technical Specifications
- PTT Key
- Available
- Emergency Key
- Available
- Jack
- 16-pin connector
- Microphone Sensitivity
- –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker Impedance
- 8 Ω±15% @ 1kHz
- Speaker Power
- 1 W (rated); 1.5 W (max.)
- Speaker Frequency Response
- 93±3 dB @ 1kHz 1 W/30 cm
- Color
- Black
- Weight
- About 160g
- Dimensions (H×W×D) mm
- 86.3 mm x 62.1 mm x 43.8 mm
- Operating Temperature
- –30℃ to 70℃
- Storage Temperature
- –40℃ to 85℃
- IP Rating
- IP67
