EHN26

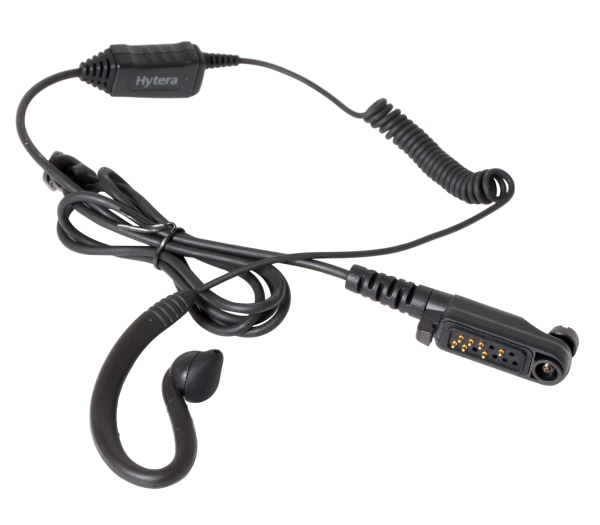

C-style Earpiece with In-line PTT and Microphone (Black)
C-style earpiece with in-line PTT and microphone to be used with handheld radios in PD6 and X1 series.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 35g
- Color
- black
- PTT key
- available
- PTT cycles
- ≥ 100,000
- VOX
- YES (activation in conjunction with the radio's VOX function)
- Emergency key
- none
- Radio connector
- 13-pin connector
- Microphone sensitivity
- -42 ±3 dB @1kHz 2.0V 2.2KΩ; 0dB=1V/Pa
- Speaker power
- 10 mW (rated); 30 mW (max.)
- Speaker impedance
- 32 Ω ±15% @1kHz
- Speaker frequency response
- 100 ±3 dB @1kHz at 0.179V
- Speaker sensitivity
- 105±3 dB @ 1 kHz
- Ingress protection
- none
- Operating temperature
- –20℃ to 60℃
- Storage temperature
- –40℃ to 85℃
