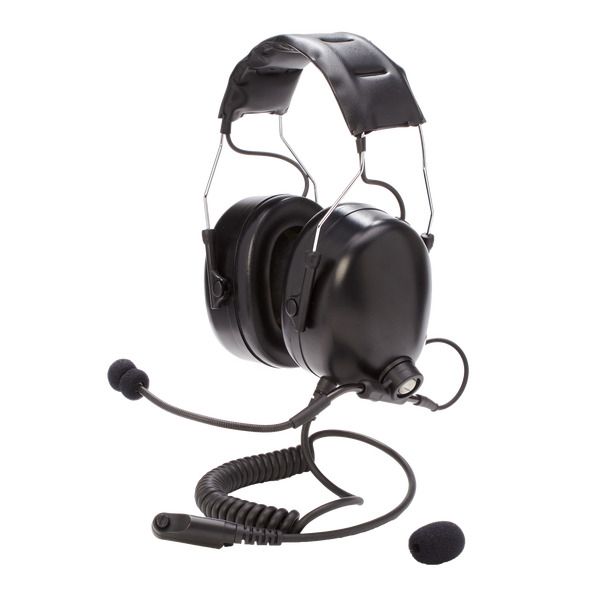

ECN21 (EOL)
Noise Protection Headset
Heavy duty headset with microphone, offering noise protection with in-built speakers, protecting your hearing and allowing the user to operate the radio in noisy environments.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 350g
- Color
- black
- PTT key
- available
- PTT cycles
- ≥ 100,000
- VOX
- YES (activation in conjunction with the radio's VOX function)
- Emergency Key
- none
- Radio connector
- 13-pin connector
- Microphone sensitivity
- -42 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
- Speaker power
- 1 W (rated); 1.5 W (max.)
- Speaker impedance
- 2 x 8 Ω ±15% @1kHz
- Speaker frequency response
- 90±4 dB @1kHz 1w/10cm
- Speaker sensitivity
- 90±4 dB/1 W @ 0.1 m 1 kHz
- Ingress protection
- none
- Operating temperature
- –30℃ to 55℃
- Storage temperature
- –40℃ to 55℃
