EAN22 (EOL)

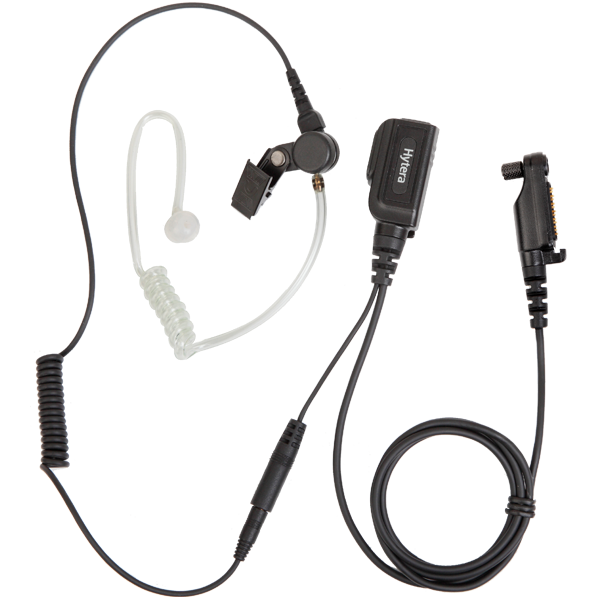

Earpiece with Acoustic Tube and Detachable In-line PTT (Black)
Earpiece with detachable acoustic tube, clip and detachable in-line PTT and microphone (Black) Consists of ACN-02 & ES-02
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 60 g
- Color
- black
- PTT key
- available
- VOX
- none
- Emergency Key
- none
- Radio connector
- 13-pin
- Microphone sensitivity
- –45±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker power
- 10 mW (rated); 300 mW (max.)
- Speaker impedance
- 220 Ω ±15% @ 1 kHz
- Speaker frequency response
- 220 Ω±15% @ 1 kHz
- Ingress protection
- IP54
- Operating temperature
- –20℃ to 60℃
- Storage temperature
- –40℃ to 85℃
- Suitable radios
- PD605, PD665, PD685, X1e, X1p, Z1p
