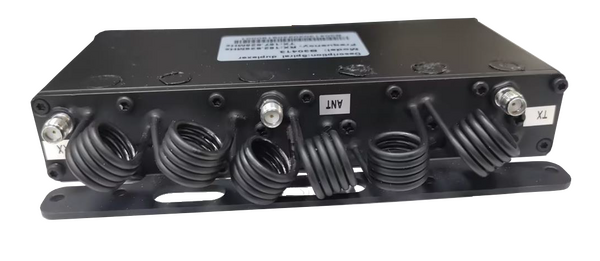

DT27

Other

Highlights

Functions

Technical Specifications

Specifications

Frequency Range
400-470 MHz
VSWR
≤1.25 @ +15°C to +35°C
Bandwidth
±100 kHz
Insertion loss
≤1.5 dB
Isolation
≥75 dB
Average input power
50 W
Impedance
50 Ω
Connector
SMA-F
Operating temperature
-30°C to +60°C
Storage temperature
-40°C to +85°C
Appearance
Black stoving varnish
Dimensions L x W x H
83 mm x 154.1 mm x 28 mm
Weight
0.5 kg
