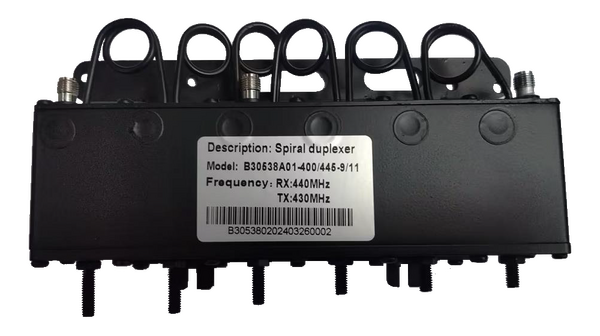

DT28
Highlights
Functions
Technical Specifications
Specifications
- Frequency Range
- 400-470 MHz
- VSWR
- ≤1.25 @ +15°C to +35°C
- Bandwidth
- ±100 kHz
- Insertion loss
- ≤1.5 dB
- Isolation
- ≥75 dB
- Average input power
- 50 W
- Impedance
- 50 Ω
- Connector
- SMA-F
- Operating temperature
- -30°C to +60°C
- Storage temperature
- -40°C to +85°C
- Appearance
- Black stoving varnish
- Dimensions L x W x H
- 83 mm x 154.1 mm x 28 mm
- Weight
- 0.5 kg
