ACN-02 (EOL)

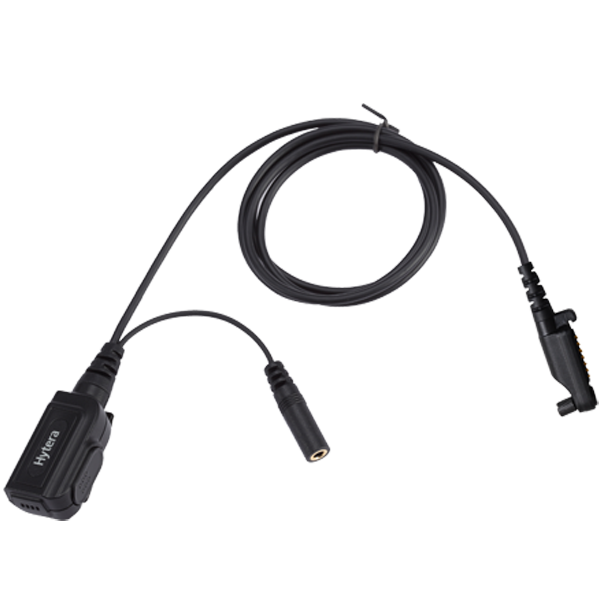

PTT and Microphone cable (for use with receive-only Earpiece)
IP54 compliant, split design PTT and microphone controller can be used with several different earphones, supports VOX.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 35g
- Color
- black
- PTT key
- available
- VOX
- YES (activation in conjunction with the radio's VOX function)
- Emergency key
- none
- Radio connector
- 13-pin connector
- Microphone sensitivity
- -45 ±3dB @1kHz 3.0V 2.2KΩ, 0dB=1V/Pa
- Ingress protection
- IP54
- Operating temperature
- -20°C to 60℃
- Storage temperature
- -40°C to 85℃
- Note
- Compatible with receive-only earpiece (3.5mm jack socket)
