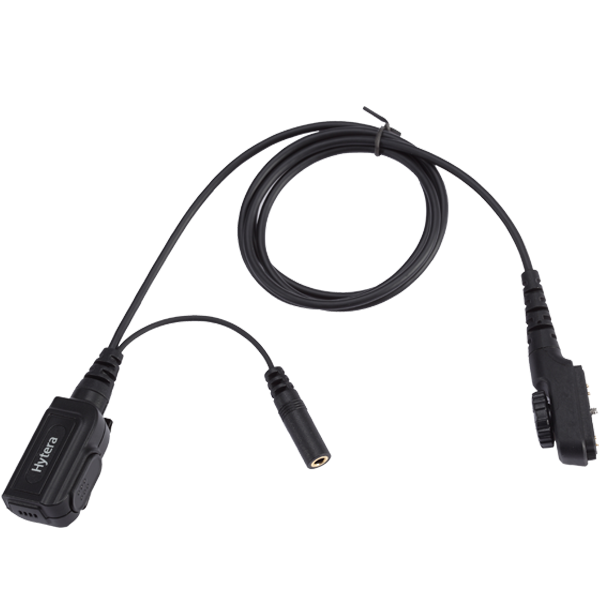

ACN-01

Audio

Highlights

Functions

Technical Specifications

Specifications

Weight
about 37g
Color
black
PTT key
available
PTT cycles
≥ 100,000
Emergency key
none
Radio connector
16-pin connector
Earpiece connector
3.5 mm jack socket
Microphone sensitivity
-45 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
Microphone impedance
≤ 2.2 kΩ @ 1 kHz
Operating voltage
1 - 10V DC
Ingress protection
IP54
Operating temperature
-20°C to 60°C
Storage temperature
-40°C to 75°C
